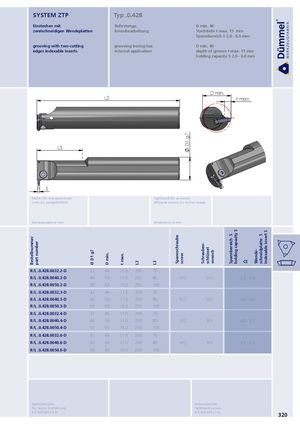

SYSTEM ZTP Typ .0.428
| Einstechen mit | Bohrstange, | D min. 46 |
| zweischneidigen Wendeplatten | Innenbearbeitung | Stechtiefe t max. 15 mm |
| Spannbereich S 2.0 - 6.0 mm | ||
| grooving with two-cutting | grooving boring bar, | D min. 46 |
| edges indexable inserts | internal application | depth of groove t max. 15 mm |
holding capacity S 2.0 - 6.0 mm
D min. L2 t max.
L3
S
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L .0.428.0032.2-D | 32 | 46 | 11.5 | 200 | 70 | |||
| R/L .0.428.0040.2-D | 40 | 50 | 11.5 | 250 | 80 | 912 | 911 | 2.0 - 3.0 |
| R/L .0.428.0050.2-D | 50 | 60 | 15.0 | 250 | 100 | |||
| R/L .0.428.0032.3-D | 32 | 46 | 11.5 | 200 | 70 | |||
| R/L .0.428.0040.3-D | 40 | 50 | 11.5 | 250 | 80 | 912 | 911 | 3.0 - 4.0 |
| R/L .0.428.0050.3-D | 50 | 60 | 15.0 | 250 | 100 | |||
| R/L .0.428.0032.4-D | 32 | 46 | 11.5 | 200 | 70 | |||
| R/L .0.428.0040.4-D | 40 | 50 | 11.5 | 250 | 80 | 912 | 911 | 4.0 - 5.1 |
| R/L .0.428.0050.4-D | 50 | 60 | 15.0 | 250 | 100 | |||
| R/L .0.428.0032.6-D | 32 | 46 | 11.5 | 200 | 70 | |||
| R/L .0.428.0040.6-D | 40 | 50 | 11.5 | 250 | 80 | 912 | 911 | 5.2 - 6.0 |
| R/L .0.428.0050.6-D | 50 | 60 | 15.0 | 250 | 100 |
