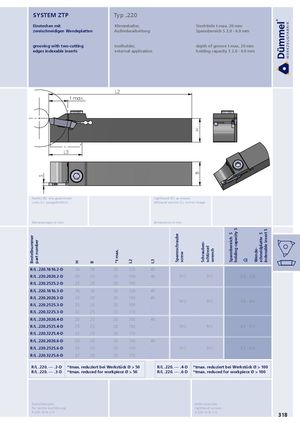

| grooving with two-cutting | toolholder, | depth of groove t max. 20 mm |
| edges indexable inserts | external application | holding capacity S 2.0 - 6.0 mm |
L2
t max.
L3
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L .220.1616.2-D | 16 | 16 | 20 | 125 | 45 | |||
| R/L .220.2020.2-D | 20 | 20 | 20 | 150 | 45 | 912 | 911 | 2.0 - 3.0 |
| R/L .220.2525.2-D | 25 | 25 | 20 | 150 | - | |||
| R/L .220.1616.3-D | 16 | 16 | 20 | 125 | 45 | |||
| R/L .220.2020.3-D | 20 | 20 | 20 | 150 | 45 | |||
| 912 | 911 | 3.0 - 4.0 | ||||||
| R/L .220.2525.3-D | 25 | 25 | 20 | 150 | - | |||
| R/L .220.3225.3-D | 32 | 25 | 20 | 170 | - | |||
| R/L .220.2020.4-D | 20 | 20 | 20 | 150 | 45 | |||
| R/L .220.2525.4-D | 25 | 25 | 20 | 150 | - | 912 | 911 | 4.0 - 5.1 |
| R/L .220.3225.4-D | 32 | 25 | 20 | 170 | - | |||
| R/L .220.2020.6-D | 20 | 20 | 20 | 150 | 45 | |||
| R/L .220.2525.6-D | 25 | 25 | 20 | 150 | - | 912 | 911 | 5.2 - 6.0 |
| R/L .220.3225.6-D | 32 | 25 | 20 | 170 | - |
| R/L .220. ∙∙∙∙ .2-D | *tmax. reduziert bei Werkstück Ø > 50 | R/L .220. ∙∙∙∙ .4-D | *tmax. reduziert bei Werkstück Ø > 100 |
| R/L .220. ∙∙∙∙ .3-D | *tmax. reduced for workpiece Ø > 50 | R/L .220. ∙∙∙∙ .6-D | *tmax. reduced for workpiece Ø > 100 |
