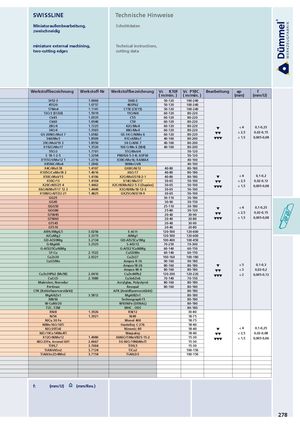

Miniaturaußenbearbeitung, Schnittdaten
miniature external machining, Technical instructions,
two-cutting edges cutting data
| Werkstoffbezeichnung | Werkstoff-Nr | Werkstoffbezeichnung | Vc K10F | Vc P18C | Bearbeitung | ap | f |
| ( m/min. ) | ( m/min. ) | (mm) | (mm/U) |
| St52-3 | 1.0060 | St60-2 | 50-120 | 100-240 | |
| 45S20 | 1.0757 | 46SPb2 | 50-120 | 100-240 | |
| 17Mn4 | 1.1141 | C15E (CK15) | 50-120 | 100-240 | |
| 13Cr3 (EC60) | 1.5919 | 15CrNi6 | 60-120 | 80-220 | |
| Ck45 | 1.0535 | C55 | 60-120 | 80-220 | |
| Ck60 | 1.0540 | C50 | 60-120 | 80-220 | |
| 28Cr4 | 1.7225 | 42CrMo4 | 60-120 | 80-220 | 0,1-0,25 < 4 6 |
| 34Cr4 | 1.3565 | 48CrMo4 | 60-120 | 80-220 | 66 |
< 2,5 0,02-0,15
| GS-20NiCrMo3 7 | 1.6582 | GS-34 CrNiMo 6 | 60-120 | 666 80-220 | ||
| 34AlMo5 | 1.8509 | 41CrAlMo7 | 40-100 | 0,005-0,08 < 1,5 80-200 | ||
| 39CrMoV19 3 | 1.8550 | 34 CrAlNi 7 | 40-100 | 80-200 | ||
| Wälzlagerstahl X192CrMo17 | 1.3520 | 100 CrMn 6 (W4) | 40-100 | 80-200 | ||
| 55Cr3 | 1.7701 | 51CrMoV4 | 50-120 | |||
| S 18-1-2-5 | 1.3294 | PMHS6-5-3-8; ASP30 | 50-120 | |||
| X155CrVMo12 1 | 1.2316 | X38CrMo16; RAMAX | 40-100 | |||
| X45NiCrMo4 | 1.2842 | 90MnCrV8 | 40-100 | |||
| X4CrMoS18 | 1.4107 | GX8CrNi12 | 40-80 | 80-180 | ||
| X105CrCoMo18 2 | 1.4016 | X6Cr17 | 40-80 | 6 80-180 | ||
| X50CrMoV15 | 1.4106 | X2CrMoSiS18-2-1 | 40-80 | 0,1-0,2 < 4 80-180 |
66
| X30Cr13 | 1.4104 | X14CrMoS17 | 30-65 | 50-100 | < 2,5 | 0,02-0,12 | |||
| X20CrNiSi25 4 | 1.4462 | X2CrNiMoN22-5-3 (Duplex) | 30-65 | 50-100 | 666 |
< 1,5 0,005-0,08
| X6CrNiMoTi17 12 2 | 1.4449 | X3CrNiMo18-12-3 | 30-65 | 50-100 | ||
| Hitzebeständig X10NiCrAlTi32-21 | 1.4825 | GX25CrNiSi18-9 | 30-65 | 50-100 | ||
| GG25 | 30-110 | 30-180 | ||||
| GG45 | 30-90 | 30-150 | ||||
| GGG50 | 25-110 | 30-180 | 0,1-0,25 < 4 6 | |||
| GGG80 | 25-80 | 30-120 | 66 |
< 2,5 0,02-0,15
| GTW45 | 20-40 | 30-90 | 666 | ||||
| GTW65 | 20-40 | 20-80 | < 1,5 | 0,005-0,08 | |||
| GTS45 | 20-40 | 30-90 | |||||
| GTS70 | 20-40 | 20-80 | |||||
| Al99,9Mg0,5 | 3.0256 | E-Al H | 120-500 | 120-600 | |||
| AlCuMg2 | 3.3315 | AlMg1 | 120-500 | 120-600 | |||
| GD-AlSi9Mg | 3.2134 | GD-AlSi5Cu1Mg | 100-400 | 100-450 | |||
| G-MgAl6 | 3.2525 | S-AlSi12 | 70-250 | 70-300 | |||
| G-AlSi25CuNiMg | G-AlSi21CuNiMg | 60-140 | 60-150 | ||||
| SF-Cu | 2.1522 | CuSl2Mn | 60-140 | 60-150 | |||
| CuZn30 | 2.0321 | CuZn37 | 100-160 | 100-180 | |||
| CuSi3Mn | Ampco 8-16 | 90-160 | 90-180 | 6 | |||
| Ampco18-26 | 80-160 | 80-180 | < 5 | 0,1-0,3 | |||
| Ampco M-4 | 80-160 | 80-180 | 66 | < 3 | 0,02-0,2 | ||
| CuZn39Pb2 (Ms58) | 2.0410 | CuZn44Pb2 | 120-200 | 120-220 | 666 | < 2 | 0,005-0,12 |
| CuCrZr | 2.1080 | CuSn6Zn6 | 70-140 | 70-150 | |||
| Makrolon, Novodur | Acrylglas, Polystyrol | 80-160 | 80-180 | ||||
| Pertinax | Resopal | 80-160 | 80-180 |
Faserverstärkte Kunststoffe GFK (Glasfaserverstärkt ) CFK (Kohlefaserverstärkt) AFK (Amidfaserverstärkt) 80-180
| MgAl6Zn1 | 3.5812 | MgAl8Zn1 | 80-180 | ||||||
| R8650 | Technograph15 | 80-180 | |||||||
| W-Cu80/20 | W93NiFe (DENAL) | 80-180 | |||||||
| Molybdän und Molybdänlegierungen | TZC, TZM | MHC , ODS | 80-180 | ||||||
| RNi8 | 1.3926 | RNi12 | 30-80 | ||||||
| Ni54 | 1.3921 | Ni49 | 18-75 | ||||||
| NiCu 30 Fe | Monel 400 | 18-75 | |||||||
| NiMo16Cr16Ti | Hastelloy C-276 | 18-40 | 6 | ||||||
| NiCr20TiAl | Nimonic 80 | 18-40 | < 4 | 0,1-0,25 | |||||
| NiCr19Co14Mo4Ti | Waspaloy | 18-40 | 66 | < 2,5 | 0,02-0,08 | ||||
| X12CrNiMo12 | 1.4980 | X6NiCrTiMoVB25-15-2 | 15-30 | 666 | < 1,5 | 0,005-0,06 | |||
| NiCr23Fe, Inconel 601 | 2.4667 | SG-NiCr19NbMoTi | 15-30 | ||||||
| Ti99,7 | 3.7064 | Ti99,5 | 15-30 | ||||||
| TiAl6V6Sn2 | 3.7124 | TiCu2 | 100-150 | ||||||
| TiAl6Sn2Zr4Mo2 | 3.7154 | TiAl6Zr5 | 100-150 |
Stahl gehärtet
f: (mm/U) (mm/Rev.)
