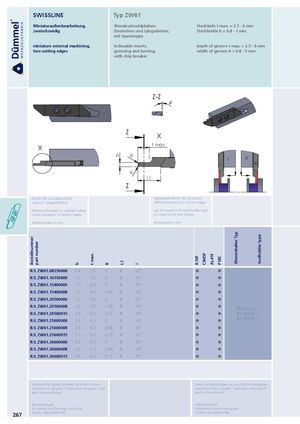

Каталог Duemmel общий 2022 - страница 272
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| Miniaturaußenbearbeitung, | Wendeschneidplatten, | Stechtiefe t max. = 2.5 - 6 mm |
| zweischneidig | Einstechen und Längsdrehen, | Stechbreite b = 0.8 - 3 mm |
| mit Spantreppe | ||
| miniature external machining, | indexable inserts, | depth of groove t max. = 2.5 - 6 mm |
| two-cutting edges | grooving and turning, | width of groove b = 0.8 - 3 mm |
with chip breaker
| X | t max. Z X ��� Z-Z | ||||
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich Rechte Schneidpl. in rechte Linke Schneidpl. in linkem Abmessungen in mm Bestellnummer part number | m Halter Halter b | t max. | R | righthand version (R lefthand version (L): use RH insert in RH t LH insert in LH tool h dimensions in mm L1 δ R R b L1 Z | ): as shown mirror image ool holder and older K10F CN45F AL41F P18C Klemmhalter Typ toolholder type L L R R |
| R/L ZW61.08250000 R/L ZW61.10350000 | 0.8 1.0 | 2.5 3.5 | 0 0 | 8 10° 8 10° | |
| R/L ZW61.15400000 | 1.5 | 4.0 | 0 | 8 10° | |
| R/L ZW61.15400008 | 1.5 | 4.0 | 0.08 | 8 10° | |
| R/L ZW61.20500000 | 2.0 | 5.0 | 0 | 8 10° | |
| R/L ZW61.20500008 | 2.0 | 5.0 | 0.08 | 8 10° | R/L HW10∙∙∙ |
| R/L ZW61.20500015 | 2.0 | 5.0 | 0.15 | 8 10° | . R/L HW15.∙∙∙ |
| ° | R/L HW20.∙∙∙ | ||||
| R/L ZW61.25600000 | 2.5 | 6.0 | 0 | 8 10 | |
| R/L ZW61.25600008 | 2.5 | 6.0 | 0.08 | 8 10° | |
| R/L ZW61.25600015 | 2.5 | 6.0 | 0.15 | 8 10° | |
| R/L ZW61.30600000 | 3.0 | 6.0 | 0 | 8 10° | |
| R/L ZW61.30600008 | 3.0 | 6.0 | 0.08 | 8 10° | |
| R/L ZW61.30600015 | 3.0 | 6.0 | 0.15 | 8 10° | |
