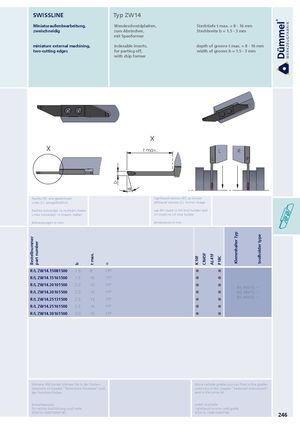

mit Spanformer
| miniature external machining, | indexable inserts, | depth of groove t max. = 8 - 16 mm |
| two-cutting edges | for parting off, | width of groove b = 1.5 - 3 mm |
with chip former
X
X
t max. L R
L R
D
| Rechts (R): wie gezeichnet | righthand version (R): as shown |
| Links (L): spiegelbildlich | lefthand version (L): mirror image |
| Rechte Schneidpl. in rechtem Halter | use RH insert in RH tool holder and |
| Linke Schneidpl. in linkem Halter | LH insert in LH tool holder |
| Abmessungen in mm | dimensions in mm |
| R/L ZW14.15081500 | 1.5 | 8 | 15° | | |
| R/L ZW14.15161500 | 1.5 | 16 | 15° | | |
| R/L ZW14.20101500 | 2.0 | 10 | 15° | | |
| R/L ZW14.20161500 | 2.0 | 16 | 15° | | |
| R/L ZW14.25131500 | 2.5 | 13 | 15° | | |
| R/L ZW14.25161500 | 2.5 | 16 | 15° | | |
| R/L ZW14.30161500 | 3.0 | 16 | 15° | | |
R/L HW10.∙∙∙ R/L HW15.∙∙∙ R/L HW20.∙∙∙
