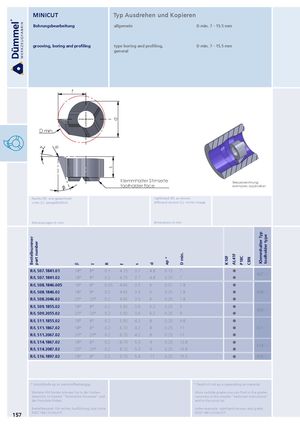

Каталог Duemmel общий 2022 - страница 162
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
Bohrungsbearbeitung allgemein D min. 7 - 15.5 mm
grooving, boring and profiling type boring and profiling, D min. 7 - 15.5 mm
general
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich R s ��� ��� f d D min. Klem toolh | mhalt older | righ left er Stirns face | thand (R): hand versi eite | as shown on (L): mirro | r image Beispielzeichn exemplary ap | ung plication |
| Abmessungen in mm Bestellnummer part number β ɣ R f | s | dim d | ensions in ap | mm D min. | K10F AL41F P18C CBN | Klemmhalter Typ toolholder type |
| R/L S07.1841.01 18° 8° 0.1 4.15 R/L S07.1841.02 18° 8° 0.2 4.15 | 3.7 3.7 | 4.8 4.8 | 0.13 0.25 | 7 7 | | 607.∙∙∙ |
| R/L S08.1846.005 18° 8° 0.05 4.65 | 3.5 | 6 | 0.07 | 7.8 | | |
| R/L S08.1846.02 18° 8° 0.2 4.65 R/L S08.2046.02 20° 20° 0.2 4.65 | 3.5 3.5 | 6 6 | 0.25 0.25 | 7.8 7.8 | | 608.∙∙∙ |
| R/L S09.1855.02 18° 8° 0.2 5.50 R/L S09.2055.02 20° 20° 0.2 5.50 | 3.6 3.6 | 6.2 6.2 | 0.25 0.25 | 9 9 | | 609.∙∙∙ |
| R/L S11.1855.02 18° 8° 0.2 5.50 | 4.2 | 8 | 0.25 | 9.8 | | |
| R/L S11.1867.02 18° 8° 0.2 6.70 R/L S11.2067.02 20° 20° 0.2 6.70 | 4.2 4.2 | 8 8 | 0.25 0.25 | 11 11 | | 611.∙∙∙ |
| R/L S14.1867.02 18° 8° 0.2 8.70 | 5.3 | 9 | 0.25 | 13.8 | | 614.∙∙∙ |
| R/L S14.2087.02 20° 20° 0.2 8.70 | 5.3 | 9 | 0.25 | 13.8 | | |
| R/L S16.1897.02 18° 8° 0.2 9.70 | 5.4 | 11 | 0.25 | 15.5 | | 616.∙∙∙ |
