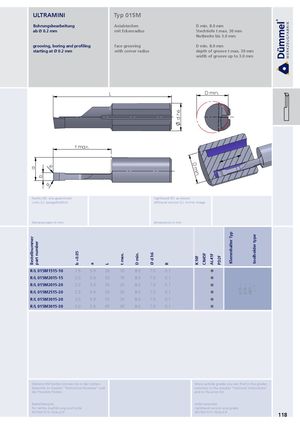

Nutbreite bis 3.0 mm
| grooving, boring and profiling | face grooving | D min. 8.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 30 mm |
width of groove up to 3.0 mm
L D min.
t max.
D
R mi
n.
R
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 015M1515-10 | 1.5 | 5.9 | 26 | 10 | 8.0 | 7.0 | 0.1 | |
| R/L 015M2015-15 | 2.0 | 5.9 | 30 | 15 | 8.0 | 7.0 | 0.1 | |
| R/L 015M2015-20 | 2.0 | 5.9 | 35 | 20 | 8.0 | 7.0 | 0.1 | |
| R/L 015M2515-20 | 2.5 | 5.9 | 35 | 20 | 8.0 | 7.0 | 0.1 | 670.∙∙∙ 676.∙∙∙ 687.∙∙∙ ∙∙∙.7 |
| R/L 015M3015-20 | 3.0 | 5.9 | 35 | 20 | 8.0 | 7.0 | 0.1 | |
| R/L 015M3015-30 | 3.0 | 5.9 | 45 | 30 | 8.0 | 7.0 | 0.1 | |
