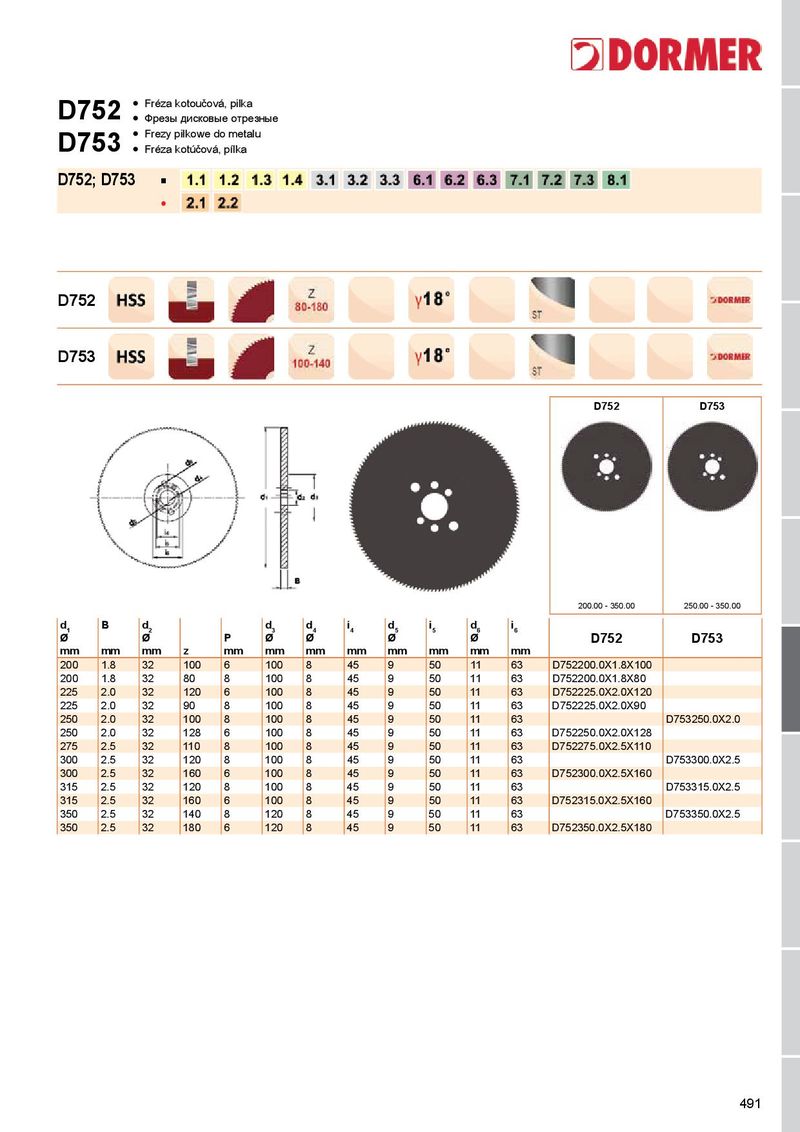

D752 Fréza kotoučová, pilka D753 Фрезы дисковые отрезные
- Frezy piłkowe do metalu
- Fréza kotúčová, pílka
D752; D753 ■
D752
D753
| D752 200.00 - 350.00 | D753 250.00 - 350.00 | ||||||||||||
| d1 Ø | B | d2 Ø | P | d3 Ø | d4 Ø | i4 | d5 Ø | i5 | d6 Ø | i6 | D752 | D753 | |
| mm | mm | mm | z | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 200 | 1.8 | 32 | 100 | 6 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752200.0X1.8X100 | |
| 200 | 1.8 | 32 | 80 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752200.0X1.8X80 | |
| 225 | 2.0 | 32 | 120 | 6 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752225.0X2.0X120 | |
| 225 | 2.0 | 32 | 90 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752225.0X2.0X90 | |
| 250 | 2.0 | 32 | 100 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D753250.0X2.0 | |
| 250 | 2.0 | 32 | 128 | 6 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752250.0X2.0X128 | |
| 275 | 2.5 | 32 | 110 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752275.0X2.5X110 | |
| 300 | 2.5 | 32 | 120 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D753300.0X2.5 | |
| 300 | 2.5 | 32 | 160 | 6 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752300.0X2.5X160 | |
| 315 | 2.5 | 32 | 120 | 8 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D753315.0X2.5 | |
| 315 | 2.5 | 32 | 160 | 6 | 100 | 8 | 45 | 9 | 50 | 11 | 63 | D752315.0X2.5X160 | |
| 350 | 2.5 | 32 | 140 | 8 | 120 | 8 | 45 | 9 | 50 | 11 | 63 | D753350.0X2.5 | |
| 350 | 2.5 | 32 | 180 | 6 | 120 | 8 | 45 | 9 | 50 | 11 | 63 | D752350.0X2.5X180 |
