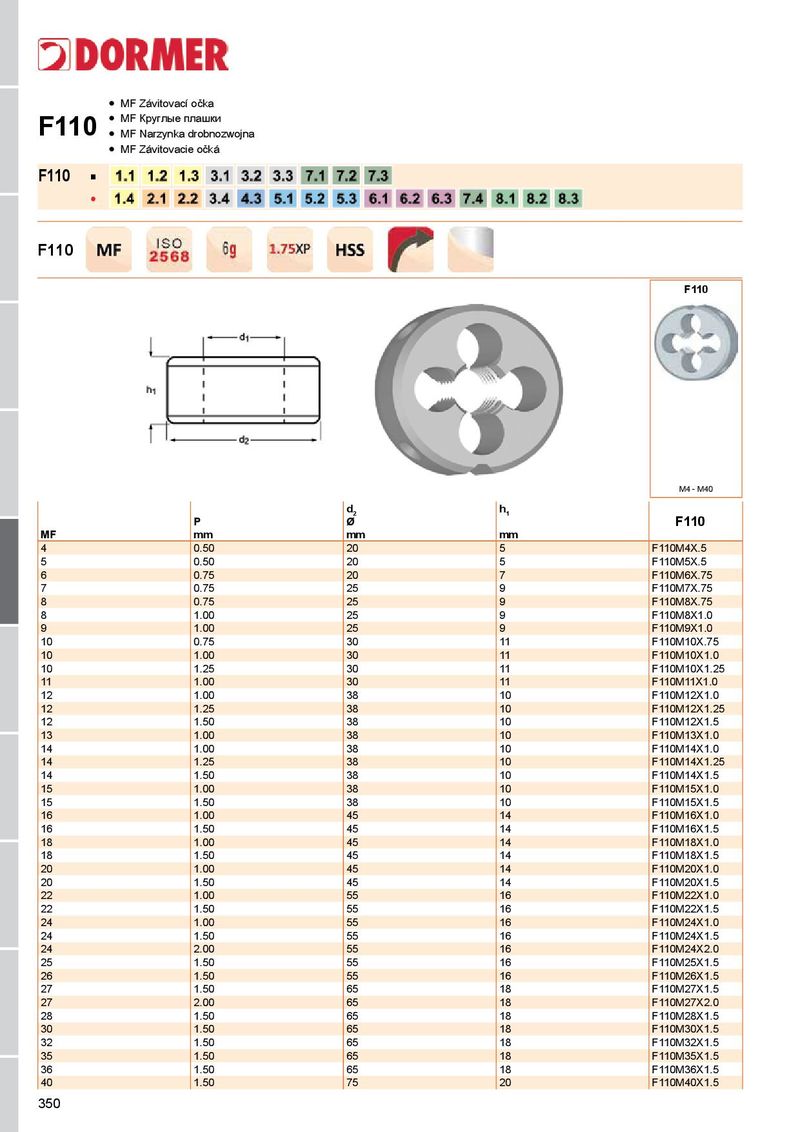

Общий каталог Dormer Pramet 2018 - страница 351
Навигация
Брошюра Dormer Pramet новинки 2021
Каталог Dormer Pramet обработка резьбы 2021 - 2022
Общий каталог Dormer Pramet 2016
Общий каталог Dormer Pramet 2017
Каталог Dormer Pramet фрезерование 2021 - 2022
Каталог Dormer Pramet токарная обработка 2021 - 2022
F110 MF Závitovací očka
- MF Круглые плашки
- MF Narzynka drobnozwojna
- MF Závitovacie očká
F110 ■
F110
F110
| M4 - M40 | ||||
| P | d2 Ø | h1 | F110 | |
| MF | mm | mm | mm | |
| 4 | 0.50 | 20 | 5 | F110M4X.5 |
| 5 | 0.50 | 20 | 5 | F110M5X.5 |
| 6 | 0.75 | 20 | 7 | F110M6X.75 |
| 7 | 0.75 | 25 | 9 | F110M7X.75 |
| 8 | 0.75 | 25 | 9 | F110M8X.75 |
| 8 | 1.00 | 25 | 9 | F110M8X1.0 |
| 9 | 1.00 | 25 | 9 | F110M9X1.0 |
| 10 | 0.75 | 30 | 11 | F110M10X.75 |
| 10 | 1.00 | 30 | 11 | F110M10X1.0 |
| 10 | 1.25 | 30 | 11 | F110M10X1.25 |
| 11 | 1.00 | 30 | 11 | F110M11X1.0 |
| 12 | 1.00 | 38 | 10 | F110M12X1.0 |
| 12 | 1.25 | 38 | 10 | F110M12X1.25 |
| 12 | 1.50 | 38 | 10 | F110M12X1.5 |
| 13 | 1.00 | 38 | 10 | F110M13X1.0 |
| 14 | 1.00 | 38 | 10 | F110M14X1.0 |
| 14 | 1.25 | 38 | 10 | F110M14X1.25 |
| 14 | 1.50 | 38 | 10 | F110M14X1.5 |
| 15 | 1.00 | 38 | 10 | F110M15X1.0 |
| 15 | 1.50 | 38 | 10 | F110M15X1.5 |
| 16 | 1.00 | 45 | 14 | F110M16X1.0 |
| 16 | 1.50 | 45 | 14 | F110M16X1.5 |
| 18 | 1.00 | 45 | 14 | F110M18X1.0 |
| 18 | 1.50 | 45 | 14 | F110M18X1.5 |
| 20 | 1.00 | 45 | 14 | F110M20X1.0 |
| 20 | 1.50 | 45 | 14 | F110M20X1.5 |
| 22 | 1.00 | 55 | 16 | F110M22X1.0 |
| 22 | 1.50 | 55 | 16 | F110M22X1.5 |
| 24 | 1.00 | 55 | 16 | F110M24X1.0 |
| 24 | 1.50 | 55 | 16 | F110M24X1.5 |
| 24 | 2.00 | 55 | 16 | F110M24X2.0 |
| 25 | 1.50 | 55 | 16 | F110M25X1.5 |
| 26 | 1.50 | 55 | 16 | F110M26X1.5 |
| 27 | 1.50 | 65 | 18 | F110M27X1.5 |
| 27 | 2.00 | 65 | 18 | F110M27X2.0 |
| 28 | 1.50 | 65 | 18 | F110M28X1.5 |
| 30 | 1.50 | 65 | 18 | F110M30X1.5 |
| 32 | 1.50 | 65 | 18 | F110M32X1.5 |
| 35 | 1.50 | 65 | 18 | F110M35X1.5 |
| 36 | 1.50 | 65 | 18 | F110M36X1.5 |
| 40 | 1.50 | 75 | 20 | F110M40X1.5 |
