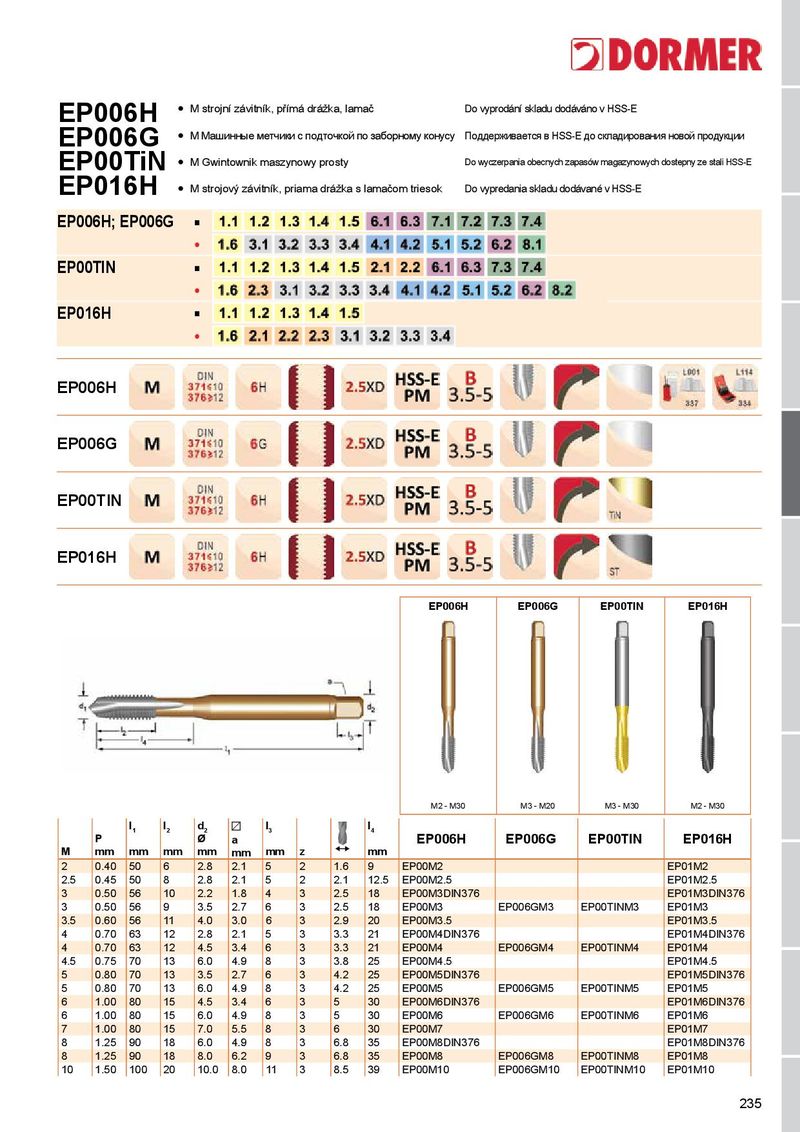

| EP006H | ● M strojní závitník, přímá drážka, lamač | Do vyprodání skladu dodáváno v HSS-E |
| EP006G | ||
| EP00TiN | ● M Машинные метчики с подточкой по заборному конусу Поддерживается в HSS-E до складирования новой продукции | |
| EP016H | ● M Gwintownik maszynowy prosty | Do wyczerpania obecnych zapasów magazynowych dostepny ze stali HSS-E |
- M strojový závitník, priama drážka s lamačom triesok Do vypredania skladu dodávané v HSS-E
EP006H; EP006G ■ EP00TIN ■ EP016H ■
| EP006H EP006G |
| EP00TIN |
| EP016H |
EP006H EP006G EP00TIN EP016H
M2 - M30 M3 - M20 M3 - M30 M2 - M30
| M | P mm | l1 mm | l2 mm | d2 Ø mm | a mm | l3 mm | z | l4 mm | EP006H | EP006G | EP00TIN | EP016H | |
| 2 | 0.40 | 50 | 6 | 2.8 | 2.1 | 5 | 2 | 1.6 | 9 | EP00M2 | EP01M2 | ||
| 2.5 | 0.45 | 50 | 8 | 2.8 | 2.1 | 5 | 2 | 2.1 | 12.5 | EP00M2.5 | EP01M2.5 | ||
| 3 | 0.50 | 56 | 10 | 2.2 | 1.8 | 4 | 3 | 2.5 | 18 | EP00M3DIN376 | EP01M3DIN376 | ||
| 3 | 0.50 | 56 | 9 | 3.5 | 2.7 | 6 | 3 | 2.5 | 18 | EP00M3 | EP006GM3 | EP00TINM3 | EP01M3 |
| 3.5 | 0.60 | 56 | 11 | 4.0 | 3.0 | 6 | 3 | 2.9 | 20 | EP00M3.5 | EP01M3.5 | ||
| 4 | 0.70 | 63 | 12 | 2.8 | 2.1 | 5 | 3 | 3.3 | 21 | EP00M4DIN376 | EP01M4DIN376 | ||
| 4 | 0.70 | 63 | 12 | 4.5 | 3.4 | 6 | 3 | 3.3 | 21 | EP00M4 | EP006GM4 | EP00TINM4 | EP01M4 |
| 4.5 | 0.75 | 70 | 13 | 6.0 | 4.9 | 8 | 3 | 3.8 | 25 | EP00M4.5 | EP01M4.5 | ||
| 5 | 0.80 | 70 | 13 | 3.5 | 2.7 | 6 | 3 | 4.2 | 25 | EP00M5DIN376 | EP01M5DIN376 | ||
| 5 | 0.80 | 70 | 13 | 6.0 | 4.9 | 8 | 3 | 4.2 | 25 | EP00M5 | EP006GM5 | EP00TINM5 | EP01M5 |
| 6 | 1.00 | 80 | 15 | 4.5 | 3.4 | 6 | 3 | 5 | 30 | EP00M6DIN376 | EP01M6DIN376 | ||
| 6 | 1.00 | 80 | 15 | 6.0 | 4.9 | 8 | 3 | 5 | 30 | EP00M6 | EP006GM6 | EP00TINM6 | EP01M6 |
| 7 | 1.00 | 80 | 15 | 7.0 | 5.5 | 8 | 3 | 6 | 30 | EP00M7 | EP01M7 | ||
| 8 | 1.25 | 90 | 18 | 6.0 | 4.9 | 8 | 3 | 6.8 | 35 | EP00M8DIN376 | EP01M8DIN376 | ||
| 8 | 1.25 | 90 | 18 | 8.0 | 6.2 | 9 | 3 | 6.8 | 35 | EP00M8 | EP006GM8 | EP00TINM8 | EP01M8 |
| 10 | 1.50 | 100 | 20 | 10.0 | 8.0 | 11 | 3 | 8.5 | 39 | EP00M10 | EP006GM10 | EP00TINM10 | EP01M10 |
