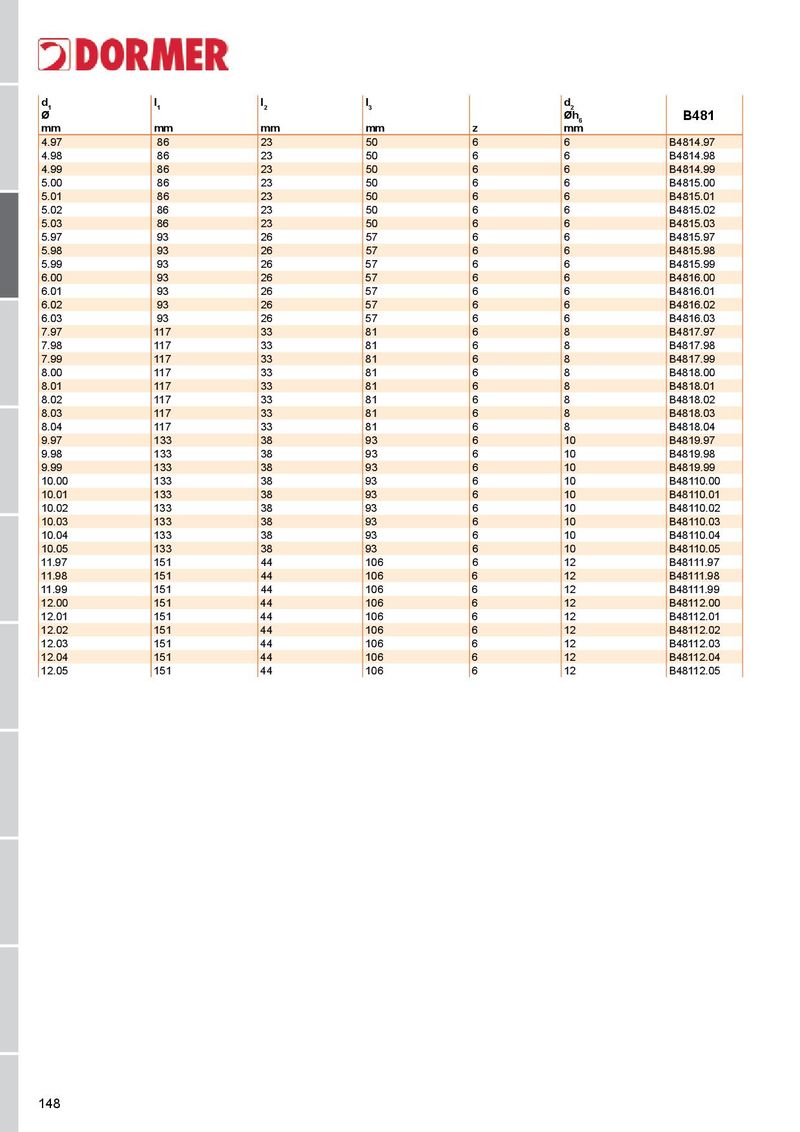

Общий каталог Dormer Pramet 2018 - страница 149

d 1 l 1 l 2 l 3 d 2 Ø Øh 6 B481 mm mm mm mm z mm 4.97 86 23 50 6 6 B4814.97 4.98 86 23 50 6 6 B4814.98 4.99 86 23 50 6 6 B4814.99 5.00 86 23 50 6 6 B4815.00 5.01 86 23 50 6 6 B4815.01 5.02 86 23 50 6 6 B4815.02 5.03 86 23 50 6 6 B4815.03 5.97 93 26 57 6 6 B4815.97 5.98 93 26 57 6 6 B4815.98 5.99 93 26 57 6 6 B4815.99 6.00 93 26 57 6 6 B4816.00 6.01 93 26 57 6 6 B4816.01 6.02 93 26 57 6 6 B4816.02 6.03 93 26 57 6 6 B4816.03 7.97 117 33 81 6 8 B4817.97 7.98 117 33 81 6 8 B4817.98 7.99 117 33 81 6 8 B4817.99 8.00 117 33 81 6 8 B4818.00 8.01 117 33 81 6 8 B4818.01 8.02 117 33 81 6 8 B4818.02 8.03 117 33 81 6 8 B4818.03 8.04 117 33 81 6 8 B4818.04 9.97 133 38 93 6 10 B4819.97 9.98 133 38 93 6 10 B4819.98 9.99 133 38 93 6 10 B4819.99 10.00 133 38 93 6 10 B48110.00 10.01 133 38 93 6 10 B48110.01 10.02 133 38 93 6 10 B48110.02 10.03 133 38 93 6 10 B48110.03 10.04 133 38 93 6 10 B48110.04 10.05 133 38 93 6 10 B48110.05 11.97 151 44 106 6 12 B48111.97 11.98 151 44 106 6 12 B48111.98 11.99 151 44 106 6 12 B48111.99 12.00 151 44 106 6 12 B48112.00 12.01 151 44 106 6 12 B48112.01 12.02 151 44 106 6 12 B48112.02 12.03 151 44 106 6 12 B48112.03 12.04 151 44 106 6 12 B48112.04 12.05 151 44 106 6 12 B48112.05 148
