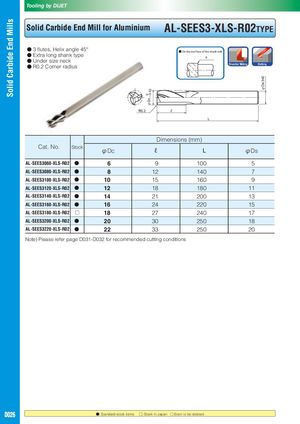

Solid Carbide End Mills φDc －0.02 0 φDs（h6） Tooling by DIJET Solid Carbide End Mill for Aluminium AL-SEES3-XLS-R02TYPE ● 3 flutes, Helix angle 45° ■ On the end face of the shank side ● Extra long shank type R ● Under size neck ● R0.2 Corner radius Shoulder R0.2 ℓ L Dimensions (mm) Cat. No. Stock φDc ℓ L φDs AL-SEES3060-XLS-R02 ● 6 9 100 5 AL-SEES3080-XLS-R02 ● 8 12 140 7 AL-SEES3100-XLS-R02 ● 10 15 160 9 AL-SEES3120-XLS-R02 ● 12 18 180 11 AL-SEES3140-XLS-R02 ● 14 21 200 13 AL-SEES3160-XLS-R02 ● 16 24 220 15 AL-SEES3180-XLS-R02 □ 18 27 240 17 AL-SEES3200-XLS-R02 ● 20 30 250 18 AL-SEES3220-XLS-R02 ● 22 33 250 20 Note) Please refer page D031-D032 for recommended cutting conditions D026 ●: Standard stock items □: Stock in Japan ○:Soon to be deleted
