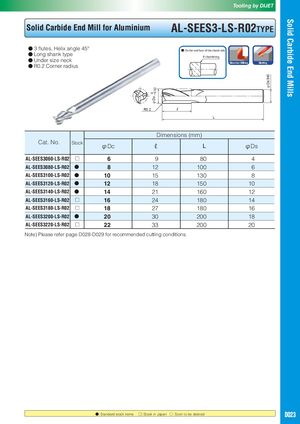

Solid Carbide End Mills φDc－00.02 φDs（h6） Tooling by DIJET Solid Carbide End Mill for Aluminium AL-SEES3-LS-R02TYPE ● 3 flutes, Helix angle 45° ■ On the end face of the shank side ● Long shank type R chamfering ● Under size neck ● R0.2 Corner radius R0.2 ℓ L Dimensions (mm) Cat. No. Stock φDc ℓ L φDs AL-SEES3060-LS-R02 □ 6 9 80 4 AL-SEES3080-LS-R02 ● 8 12 100 6 AL-SEES3100-LS-R02 ● 10 15 130 8 AL-SEES3120-LS-R02 ● 12 18 150 10 AL-SEES3140-LS-R02 ● 14 21 160 12 AL-SEES3160-LS-R02 □ 16 24 180 14 AL-SEES3180-LS-R02 □ 18 27 180 16 AL-SEES3200-LS-R02 ● 20 30 200 18 AL-SEES3220-LS-R02 □ 22 33 200 20 Note) Please refer page D028-D029 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D023
