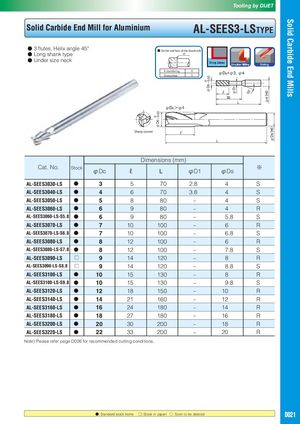

Tooling by DIJET Solid Carbide End Mills Solid Carbide End Mill for Aluminium AL-SEES3-LSTYPE ● 3 flutes, Helix angle 45° ■ On the end face of the shank side ● Long shank type ※ ● Under size neck φDc=φ3, φ4 R chamfering R Sharp edge S φDc－0.02 0 φD1 φ4（h6） ℓ ° 10 30 L φDc＞φ4 φDc－0.02 0 φDs（h6） Sharp corner ℓ L Dimensions (mm) Cat. No. Stock ※ φDc ℓ L φD1 φDs AL-SEES3030-LS ● 3 5 70 2.8 4 S AL-SEES3040-LS ● 4 6 70 3.8 4 S AL-SEES3050-LS ● 5 8 80 − 4 S AL-SEES3060-LS ● 6 9 80 − 4 R AL-SEES3060-LS-S5.8 ● 6 9 80 − 5.8 S AL-SEES3070-LS ● 7 10 100 − 6 R AL-SEES3070-LS-S6.8 ● 7 10 100 − 6.8 S AL-SEES3080-LS ● 8 12 100 − 6 R AL-SEES3080-LS-S7.8 ● 8 12 100 − 7.8 S AL-SEES3090-LS □ 9 14 120 − 8 R AL-SEES3090-LS-S8.8 □ 9 14 120 − 8.8 S AL-SEES3100-LS ● 10 15 130 − 8 R AL-SEES3100-LS-S9.8 ● 10 15 130 − 9.8 S AL-SEES3120-LS ● 12 18 150 − 10 R AL-SEES3140-LS ● 14 21 160 − 12 R AL-SEES3160-LS ● 16 24 180 − 14 R AL-SEES3180-LS ● 18 27 180 − 16 R Note)Pleaserefer AL-SEES3200-LS ● pageD052for 20 30 200 recommendedcuttingconditions. − 18 R AL-SEES3220-LS ● 22 33 200 − 20 R Note) Please refer page D026 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D021
