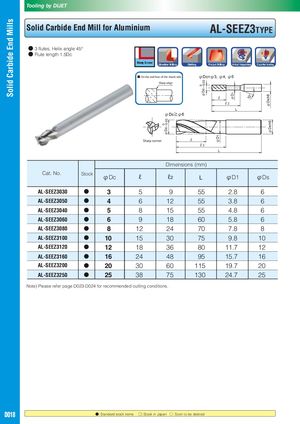

Solid Carbide End Mills φDc－00.02 φDc－00.02 φD1 φD1 10° φDs h6φDs h6 Tooling by DIJET Solid Carbide End Mill for Aluminium AL-SEEZ3TYPE ● 3 flutes, Helix angle 45° ● Flute length 1.5Dc ■ On the end face of the shank side φDc=φ3, φ4, φ5 Sharp edge ℓ ℓ2 L φDc≧φ6 Sharp corner ℓ ℓ2 L Dimensions (mm) Cat. No. Stock φDc ℓ ℓ2 L φD1 φDs AL-SEEZ3030 ● 3 5 9 55 2.8 6 AL-SEEZ3050 ● 4 6 12 55 3.8 6 AL-SEEZ3040 ● 5 8 15 55 4.8 6 AL-SEEZ3060 ● 6 9 18 60 5.8 6 AL-SEEZ3080 ● 8 12 24 70 7.8 8 AL-SEEZ3100 ● 10 15 30 75 9.8 10 AL-SEEZ3120 ● 12 18 36 80 11.7 12 AL-SEEZ3160 ● 16 24 48 95 15.7 16 AL-SEEZ3200 ● 20 30 60 115 19.7 20 AL-SEEZ3250 ● 25 38 75 130 24.7 25 Note) Please refer page D023-D024 for recommended cutting conditions. D018 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
