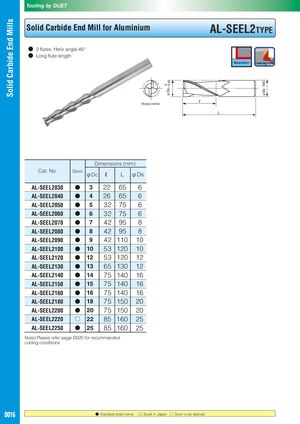

Общий каталог Dijet 2018 - страница 498

Solid Carbide End Mills φDc－00.02 φDs（h6） Tooling by DIJET Solid Carbide End Mill for Aluminium AL-SEEL2TYPE ● 2 flutes, Helix angle 45° ● Long flute length Sharp corner ℓ L Dimensions (mm) Cat. No. Stock φDc ℓ L φDs AL-SEEL2030 ● 3 22 65 6 AL-SEEL2040 ● 4 26 65 6 AL-SEEL2050 ● 5 32 75 6 AL-SEEL2060 ● 6 32 75 6 AL-SEEL2070 ● 7 42 95 8 AL-SEEL2080 ● 8 42 95 8 AL-SEEL2090 ● 9 42 110 10 AL-SEEL2100 ● 10 53 120 10 AL-SEEL2120 ● 12 53 120 12 AL-SEEL2130 ● 13 65 130 12 AL-SEEL2140 ● 14 75 140 16 AL-SEEL2150 ● 15 75 140 16 AL-SEEL2160 ● 16 75 140 16 AL-SEEL2180 ● 18 75 150 20 AL-SEEL2200 ● 20 75 150 20 AL-SEEL2220 □ 22 85 160 25 AL-SEEL2250 ● 25 85 160 25 Note) Please refer page D020 for recommended cutting conditions D016 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
