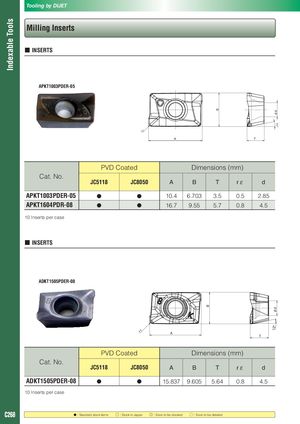

Tooling by DIJET Indexable Tools Milling Inserts ■ INSERTS APKT1003PDER-05 B φd 11° rε A T PVD Coated Dimensions (mm) Cat. No. JC5118 JC8050 A B T rε d APKT1003PDER-05 ● ● 10.4 6.703 3.5 0.5 2.85 APKT1604PDR-08 ● ● 16.7 9.55 5.7 0.8 4.5 10 Inserts per case ■ INSERTS ADKT1505PDER-08 B φd 12° rε A T PVD Coated Dimensions (mm) Cat. No. JC5118 JC8050 A B T rε d ADKT1505PDER-08 ● ● 15.837 9.605 5.64 0.8 4.5 10 Inserts per case C268 : Standard stock items □ : Stock in Japan ◎ : Soon to be stocked ○ : Soon to be deleted
