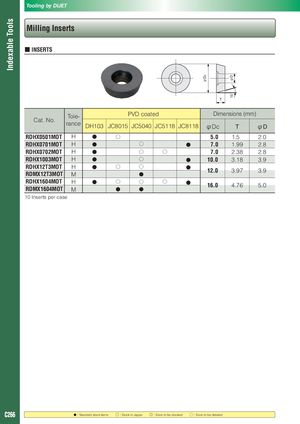

Tooling by DIJET Indexable Tools Milling Inserts ■ INSERTS φDc φD 15˚ T Tole- PVD coated Dimensions (mm) Cat. No. rance DH103 JC8015 JC5040 JC5118 JC8118 φDc T φD RDHX0501MOT H ● ○ 5.0 1.5 2.0 RDHX0701MOT H ● ○ ● 7.0 1.99 2.8 RDHX0702MOT H ● ○ ○ 7.0 2.38 2.8 RDHX1003MOT H ● ○ ● 10.0 3.18 3.9 RDHX12T3MOT H ● ○ ○ ● 12.0 3.97 3.9 RDMX12T3MOT M ● RDHX1604MOT H ● ○ ○ ○ ● 16.0 4.76 5.0 RDMX1604MOT M ● ● 10 Inserts per case C266 : Standard stock items □ : Stock in Japan ◎ : Soon to be stocked ○ : Soon to be deleted
