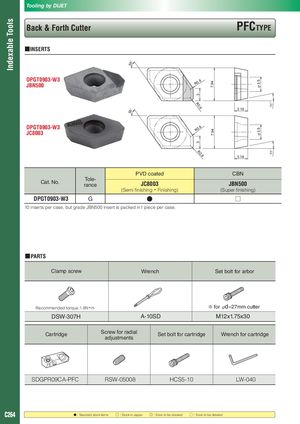

Tooling by DIJET Tooling DIJET Indexable Tools Back & Forth Cutter PFCTYPE ■ ■INSERTS ° 55 DPGT0903-W3 .8 φ3.5 R0 7.94 JBN500 3 11° R0 3.18 .8 ° DPGT0903-W3 55 R0 .8 φ3.5 7.94 JC8003 3 11° R0 3.18 .8 PVD coated CBN Tole- Cat. No. JC8003 JBN500 rance ・ ・Finishing) (Semi finishing (Super finishing) DPGT0903-W3 G G ●● ●□ 10 inserts per case, but grade JBN500 insert is packed in1 piece per case. ■ ■PARTS Clamp screw Wrench Set bolt for arbor Recommended torque:1.8N・・ m ※ for forφϕd =27mm cutter d＝27mm cutter DSW-307H DSW-307H A-10SD A-10SD M12x1.75x30 M12x1.75x30 Cartridge Screw for radial Set bolt for cartridge Wrench for cartridge adjustments SDGPR09CA-PFC SDGPR09CA-PFC RSW-05008 RSW-05008 HCS5-10 HCS5-10 LW-040 LW-040 ●： □： ◎： in Japan ○： ◎ : Soon ※ to be deleted C264 C318 : Standard stock items □ : Stock to be stocked ○ : Soon
