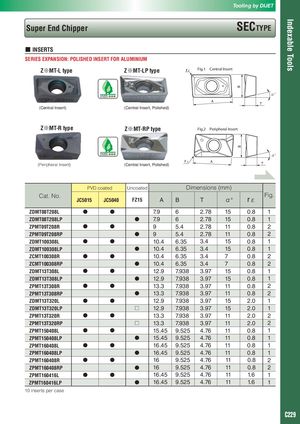

Toolingby Tooling by DIJET DIJET Indexable Tools Super End Chipper SECTYPE ■ INSERTS SERIES EXPANSION: POLISHED INSERT FOR ALUMINIUM ※ Z※MT-L type ※ Z※MT-LP type rε Fig.1 Central Insert B 2007-048 α° A T （Central (Central Insert） Insert) （Central (CentralInsert, Insert,Polished） Polished) ※ Z※MT-R type ※ Z※MT-RP type Fig.2 Peripheral Insert B α° 2007-048 rε A （PeripheralInsert) (Peripheral Insert） （Peripheral Insert, Polished） (Central Insert, Polished) T PVD coated PVD coated Uncoated Uncoated Dimensions Dimensions(mm) (mm) Cat. No. Fig. Fig. α° Cat. No. JC5015 JC5040 FZ15 A A BB TT α° rrε ZDMT08T208L ● ● 7.9 7.9 66 2.78 2.78 15 15 0.8 0.8 11 ZDMT08T208LP ● 7.9 7.9 66 2.78 2.78 15 15 0.8 0.8 11 ZPMT09T208R ● ● 99 5.4 5.4 2.78 2.78 11 11 0.8 0.8 22 ZPMT09T208RP ● 99 5.4 5.4 2.78 2.78 11 11 0.8 0.8 22 ZDMT100308L ● ● 10.4 10.4 6.35 6.35 3.4 3.4 15 15 0.8 0.8 11 ZDMT100308LP ● 10.4 10.4 6.35 6.35 3.4 3.4 15 15 0.8 0.8 11 ZCMT100308R ● ● 10.4 10.4 6.35 6.35 3.4 3.4 77 0.8 0.8 22 ZCMT100308RP ● 10.4 10.4 6.35 6.35 3.4 3.4 77 0.8 0.8 22 ZDMT13T308L ● ● 12.9 12.9 7.938 7.938 3.97 3.97 15 15 0.8 0.8 11 ZDMT13T308LP ● 12.9 12.9 7.938 7.938 3.97 3.97 15 15 0.8 0.8 11 ZPMT13T308R ● ● 13.3 13.3 7.938 7.938 3.97 3.97 11 11 0.8 0.8 22 ZPMT13T308RP ● 13.3 13.3 7.938 7.938 3.97 3.97 11 11 0.8 0.8 22 ZDMT13T320L ● ● 12.9 12.9 7.938 7.938 3.97 3.97 15 15 2.0 2.0 11 ZDMT13T320LP ● □ 12.9 12.9 7.938 7.938 3.97 3.97 15 15 2.0 2.0 11 ZPMT13T320R ● ● 13.3 13.3 7.938 7.938 3.97 3.97 11 11 2.0 2.0 22 ZPMT13T320RP ● □ 13.3 13.3 7.938 7.938 3.97 3.97 11 11 2.0 2.0 22 ZPMT150408L ● ● 15.45 15.45 9.525 9.525 4.76 4.76 11 11 0.8 0.8 11 ZPMT150408LP ● 15.45 15.45 9.525 9.525 4.76 4.76 11 11 0.8 0.8 11 ZPMT160408L ● ● 16.45 16.45 9.525 9.525 4.76 4.76 11 11 0.8 0.8 11 ZPMT160408LP ● 16.45 16.45 9.525 9.525 4.76 4.76 11 11 0.8 0.8 11 ZPMT160408R ● ● 16 16 9.525 9.525 4.76 4.76 11 11 0.8 0.8 22 ZPMT160408RP ● 16 16 9.525 9.525 4.76 4.76 11 11 0.8 0.8 22 ZPMT160416L ● ● 16.45 16.45 9.525 9.525 4.76 4.76 11 11 1.6 1.6 11 ZPMT160416LP ● 16.45 16.45 9.525 9.525 4.76 4.76 11 11 1.6 1.6 11 10 inserts 10 inserts per per case case ●：Standard stock items □：Stock in Japan ◎：Soon to be stocked ○：Soon to be deleted ※ : Production after order received C229 C233 C233
