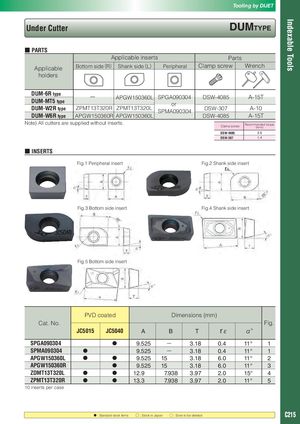

Tooling by DIJET Indexable Tools Under Cutter DuMTyPE ■ PARTS Applicable inserts Parts Applicable Bottom side（R） Shank side（L） Peripheral Clamp screw Wrench holders DUM-6R type ー APGW150360L SPGA090304 DSW-4085 A-15T DUM-MT5 type or DUM-W2R type ZPMT13T320R ZPMT13T320L DSW-307 A-10 SPMA090304 DUM-W6R type APGW150360R APGW150360L DSW-4085 A-15T Note) All cutters are supplied without inserts. Recommended torque Clamp screw （N・m） DSW-4085 3.6 DSW-307 1.4 ■ INSERTS Fig.1 Peripheral insert Fig.2 Shank side insert rε Fig.3 Bottom side insert Fig.4 Shank side insert Fig.5 Bottom side insert PVD coated Dimensions (mm) Cat. No. Fig. JC5015 JC5040 A B T rε α° SPGA090304 ● 9.525 － 3.18 0.4 11° 1 SPMA090304 ● 9.525 － 3.18 0.4 11° 1 APGW150360L ● ● 9.525 15 3.18 6.0 11° 2 APGW150360R ● 9.525 15 3.18 6.0 11° 3 ZDMT13T320L ● ● 12.9 7.938 3.97 2.0 15° 4 ZPMT13T320R ● ● 13.3 7.938 3.97 2.0 11° 5 10 inserts per case : Standard stock items □ : Stock in Japan ○ : Soon to be deleted C215
