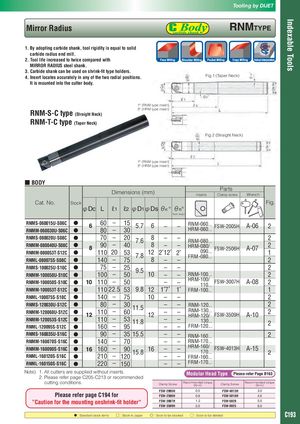

Tooling by DIJET Indexable Tools Mirror Radius RnMTyPE 1. By adopting carbide shank, tool rigidity is equal to solid carbide radius end mill. 2. Tool life increased to twice compared with MIRROR RADIUS steel shank. 3. Carbide shank can be used on shrink-fit type holders. 4. Insert locates accurately in any of the two radial positions. Fig.1 (Taper Neck) It is mounted into the cutter body. 1° (RNM type insert) 3° (HRM type insert) RNM-S-C type (Straight Neck) RNM-T-C type (Taper Neck) Fig.2 (Straight Neck) 1° (RNM type insert) 3° (HRM type insert) ■ BODY Parts Dimensions (mm) Inserts Clamp screw Wrench Cat. No. Stock Fig. φDc L ℓ1 ℓ2 φD1φDs θκ° θn° Taper angle RNMS-060015U-S06C ● 60 – 15 5.7 6 RNM-060... FSW-2005H 6 – – A-06 2 RNMM-060030U-S06C ● 80 – 30 HRM-060... RNMS-080020U-S08C ● 70 – 20 7.6 8 – – 2 RNM-080... RNMM-080040U-S08C ● 90 – 40 8 – – HRM-080/ FSW-2506H 2 8 A-07 RNMM-080053T-S12C ● 110 20 53 7.8 12 2˚12′2˚ 090... 1 FRM-080... RNML-080075S-S08C ● 140 – 75 8 – – 2 RNMS-100025U-S10C ● 75 – 25 9.5 – – 2 RNMM-100050U-S10C ● 100 – 50 10 – – RNM-100... 2 HRM-100/ FSW-3007H RNMM-100050S-S10C ● 10 110 – 50 – – A-08 2 110... RNMM-100053T-S12C ● 110 22.5 53 9.8 12 1˚7′ 1˚ FRM-100... 1 RNML-100075S-S10C ● 140 – 75 10 – – 2 RNMS-120030U-S12C ● 80 – 30 11.5 – – RNM-120... 2 RNMM-120060U-S12C ● 110 – 60 – – RNM-130... 2 12 12 HRM-120/ FSW-3509H A-10 RNMM-120053S-S12C ● 110 – 53 11.8 – – 130... ● 2 RNML-120095S-S12C 160 – 95 – – FRM-120... RNMS-160035U-S16C ● 90 – 35 15.5 – – RNM-160... 2 RNMM-160070S-S16C ● 140 – 70 – – RNM-170... ● HRM-160/ FSW-4013H RNMM-160090S-S16C 16 160 – 90 15.8 16 – – 170... A-15 2 RNML-160120S-S16C ● 210 – 120 – – FRM-160... RNML-160150S-S16C ● 220 – 150 – – FRM-170... Note) 1. All cutters are supplied without inserts. Modular Head Type Please refer Page B163 2. Please refer page C205-C213 or recommended cutting conditions. Clamp Screw Recommended torque （N・m） Clamp Screw Recommended torque （N・m） FSW-2005H 0.5 FSW-4013H 3.0 Please refer page C194 for FSW-2506H 0.9 FSW-5016H 4.0 FSW-3007H 1.2 FSW-6020 5.0 ”Caution for the mounting onshrink-fit holder“ FSW-3509H 2.0 FSW-8025 6.0 : Standard stock items □ : Stock in Japan ◎ : Soon to be stocked ○ : Soon to be deleted C193
