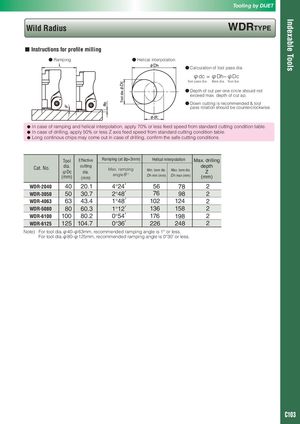

Indexable Tools Tooling by DIJET Wild Radius WDRTyPE ■ Instructions for profile milling ● Ramping ● Helical interpolation ● Calculation of tool pass dia. φdc = φDh−φDc Tool pass dia. Bore dia. Tool dia. ● Depth of cut per one circle should not exceed max. depth of cut ap. ● Down cutting is recommended & tool pass rotation should be counterclockwise. ● In case of ramping and helical interpolation, apply 70% or less feed speed from standard cutting condition table. ● In case of drilling, apply 50% or less Z axis feed speed from standard cutting condition table. ● Long continous chips may come out in case of drilling, confirm the safe cutting conditions. Tool Effective Ramping (at ap=3mm) Helical interpolation Max. drilling Cat. No. dia. cuttingφDcdia.(mm)(mm)Max. rampingangleθ° depthMin. bore dia.Max. bore dia.ZDh min (mm)Dh max (mm)(mm) WDR-2040 40 20.1 4°24′ 56 78 2 WDR-3050 50 30.7 2°48′ 76 98 2 WDR-4063 63 43.4 1°48′ 102 124 2 WDR-5080 80 60.3 1°12′ 136 158 2 WDR-6100 100 80.2 0°54′ 176 198 2 WDR-6125 125 104.7 0°36′ 226 248 2 Note) For tool dia.φ40-φ63mm, recommended ramping angle is 1° or less. For tool dia.φ80-φ125mm, recommended ramping angle is 0°30' or less. C103
