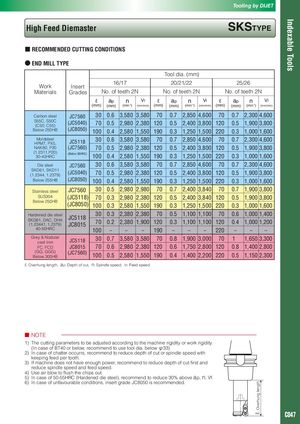

Indexable Tools Tooling by DIJET High Feed Diemaster SKSTyPE ■ RECOMMENDED CUTTING CONDITIONS ● END MILL TYPE Tool dia. (mm) Work Insert 16/17 20/21/22 25/26 Materials Grades No. of teeth 2N No. of teeth 2N No. of teeth 2N ℓ ap n Vf ℓ ap n Vf ℓ ap n Vf (mm) (mm) (min-1) (mm/min) (mm) (mm) (min-1) (mm/min) (mm) (mm) (min-1) (mm/min) Carbon steel JC7560 30 0.6 3,580 3,580 70 0.7 2,850 4,600 70 0.7 2,300 4,600 S55C, S50C(C50, C55)(JC5040) 70 0.5 2,980 2,380 120 0.5 2,400 3,800 120 0.5 1,900 3,800 Below 250HB (JC8050) 100 0.4 2,580 1,550 190 0.3 1,250 1,500 220 0.3 1,000 1,600 MoldsteelHPM7, PX5,JC5118 30 0.6 3,580 3,580 70 0.7 2,850 4,600 70 0.7 2,300 4,600 NAK80, P20 (JC7560) 70 0.5 2,980 2,380 120 0.5 2,400 3,800 120 0.5 1,900 3,800 (1.2311,P20)30-43HRC (Below 36HRC) 100 0.4 2,580 1,550 190 0.3 1,250 1,500 220 0.3 1,000 1,600 Die steel JC7560 30 0.6 3,580 3,580 70 0.7 2,850 4,600 70 0.7 2,300 4,600 SKD61, SKD11(1.2344, 1.2379)(JC5040) 70 0.5 2,980 2,380 120 0.5 2,400 3,800 120 0.5 1,900 3,800 Below 255HB (JC8050) 100 0.4 2,580 1,550 190 0.3 1,250 1,500 220 0.3 1,000 1,600 Stainless steel JC7560 30 0.5 2,980 2,980 70 0.7 2,400 3,840 70 0.7 1,900 3,800 SUS304 (JC5118) 70 0.3 2,980 2,380 120 0.5 2,400 3,840 120 0.5 1,900 3,800 Below 250HB (JC8050) 100 0.3 2,580 1,550 190 0.3 1,250 1,500 220 0.3 1,000 1,600 Hardened die steelSKD61, DAC, DHAJC5118(1.23441, 1.2379)JC8015300.32,3802,380 70 0.5 1,100 1,100 70 0.6 1,000 1,400700.22,3801,9001200.31,1001,1001200.41,000 1,200 40-50HRC 100 − − − 190 − − − 220 − − − Grey & Nodularcast ironJC5118 30 0.7 3,580 3,580 70 0.8 1,900 3,000 70 1 1,650 3,300 FC, FCD JC8015 70 0.6 2,980 2,380 120 0.6 1,750 2,800 120 0.8 1,400 2,800 (GG, GGG)Below 300HB(JC7560) 100 0.5 2,580 1,550 190 0.4 1,400 2,200 220 0.5 1,150 2,300 ℓ: Overhung length, ap: Depth of cut, n: Spindle speed, Vf: Feed speed ■ NOTE 1) The cutting parameters to be adjusted according to the machine rigidity or work rigidity. (In case of BT40 or below, recommend to use tool dia. below φ33) 2) In case of chatter occurrs, recommend to reduce depth of cut or spindle speed with keeping feed per tooth. 3) If machine does not have enough power, recommend to reduce depth of cut first and reduce spindle speed and feed speed. 4) Use air blow to flush the chips out. 5) In case of 50-55HRC (Hardened die steel), recommend to reduce 30% above ap, n, Vf. 6) In case of unfavourable conditions, insert grade JC8050 is recommended. C047 ℓ: Overhung length
