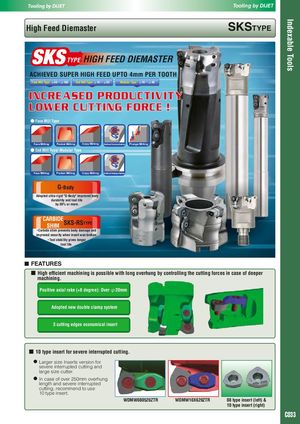

Indexable Tools Indexable Tools Tooling by DIJET Tooling by DIJET High Feed Diemaster SKSTYPE TYPE HIGH FEED DIEMASTER ACHIEVED SUPER HIGH FEED UPTO 4mm PER TOOTH Face Mill Type: φ40〜φ160 End Mill Type: φ16〜φ50 Modular Type : φ16〜φ40 INCREASED PRODUCTIVITY LOWER CUTTING FORCE ! ● Face Mill Type Face Milling Pocket Milling Copy Milling Helical Interpolation Plunge Milling ● End Mill Type/ Modular Type Face Milling Pocket Milling Copy Milling Helical Interpolation G-Body Adopted ultra-rigid "G-Body" improved body durability and tool life by 30% or more. CARBIDE SHIM SKS-RSTYPE ・Carbide shim prevents body damage and improved security when insert was broken. ・Tool stability gives longer tool life. ■ FEATURES ■ High efficient machining is possible with long overhung by controlling the cutting forces in case of deeper machining. Positive axial rake (+8 degree): Over φ20mm Adopted new double clamp system 3 cutting edges economical insert ■ 10 type insert for severe interrupted cutting. Larger size Inserts version for severe interrupted cutting and large size cutter. In case of over 250mm overhung length and severe interrupted cutting, recommend to use 10 type insert. WDMW080520ZTR WDMW10X620ZTR 08 type insert (left) & 10 type insert (right) C033
