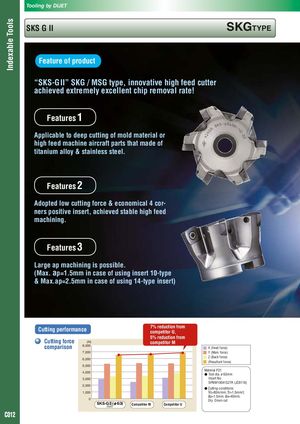

Indexable Tools Tooling by DIJET SKS G II SKGTYPE Feature of product “SKS-GII” SKG / MSG type, innovative high feed cutter achieved extremely excellent chip removal rate! Features 1 Applicable to deep cutting of mold material or high feed machine aircraft parts that made of titanium alloy & stainless steel. Features 2 Adopted low cutting force & economical 4 cor- ners positive insert, achieved stable high feed machining. Features 3 Large ap machining is possible. (Max. ap=1.5mm in case of using insert 10-type & Max.ap=2.5mm in case of using 14-type insert) Cutting performance 7% reduction fromcompetitor U, 5% reduction from Cutting force (N) competitor M comparison 8,000 X (Feed force) 7,000 Y (Main force) 6,000 Z (Back force) (Resultant force) 5,000 4,000 Material P21● Tool dia. ø 63mm 3,000 Insert No. SPNW100415ZTR (JC8118) 2,000 ● Cutting conditions: 1,000 Vc=80m/min, fz=1.5mm/t, ap=1.5mm, ae=40mm, 0 Dry, Down cut SKS-GⅡ(φ63) Competitor M Competitor U DIJET C012
