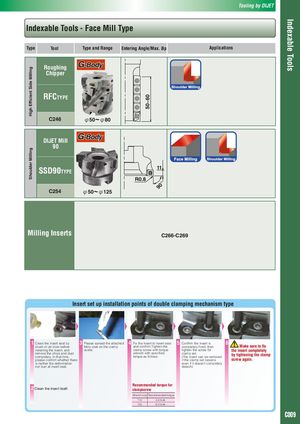

Type Tool Type and Range Entering Angle/Max. ap Applications
Roughing
Chipper
RFCTYPE
C246 φ50~φ80
DIJET Mill
90
SSD90 11
TYPE
R0.8
φ ~φ 90
C254 50 125
Milling Inserts
C266-C269
Insert set up installation points of double clamping mechanism type
| 1 | 3 | 4 | 5 | 6 |
| Clean the insert seat by | Please spread the attached | Fix the insert to insert seat | Confirm the insert is | |
| brush or air blow before | Moly coat on the clamp | and confirm.Tighten the | completely fixed, then | Make sure to fix |
| installing the insert, and | screw. | clamp screw with torque | tighten the screw for | the insert completely |
| remove the chips and dust | wrench with specified | clamp set. | by tightening the clamp | |
| completely. In that time, | torque as follows. | (The insert can be removed | ||
| please confirm whether there | if the clamp set loosens | screw again. |
is neither the deformation even if it doesn‘t completely nor burr at insert seat. detach)
2 Recommended torque for Clean the insert itself. clampscrew Wrench size Recommended torque T15 3.6 N ·m T20 6.0 N ·m
