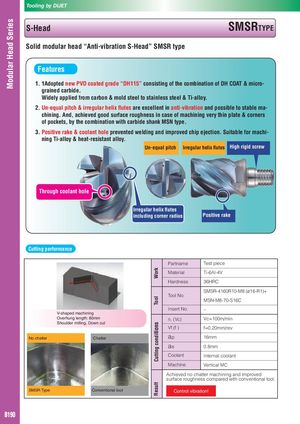

Modular Head Series WorkToolCutting conditionsResult Tooling by DIJET S-Head SMSRTYPE Solid modular head “Anti-vibration S-Head” SMSR type Features 1. 1Adopted new PVD coated grade “DH115” consisting of the combination of DH COAT & micro- grained carbide. Widely applied from carbon & mold steel to stainless steel & Ti-alloy. 2. Un-equal pitch & irregular helix flutes are excellent in anti-vibration and possible to stable ma- chining. And, achieved good surface roughness in case of machining very thin plate & corners of pockets, by the combination with carbide shank MSN type. 3. Positive rake & coolant hole prevented welding and improved chip ejection. Suitable for machi- ning Ti-alloy & heat-resistant alloy. Un-equal pitch Irregular helix flutes High rigid screw Through coolant hole Irregular helix flutes including corner radius Positive rake Cutting performance Partname Test piece Material Ti-6Al-4V Hardness 36HRC SMSR-4160R10-M8 (ø16-R1)+ Tool No. MSN-M8-70-S16C Insert No. – V-shaped machining Overhung length: 80mm n, (Vc) Vc=100m/min Shoulder milling, Down cut Vf,(f ) f=0.20mm/rev No chatter Chatter ap 16mm ae 0.8mm Coolant Internal coolant Machine Vertical MC Achieved no chatter machining and improved surface roughness compared with conventional tool. SMSR Type Conventional tool Control vibration! B190
