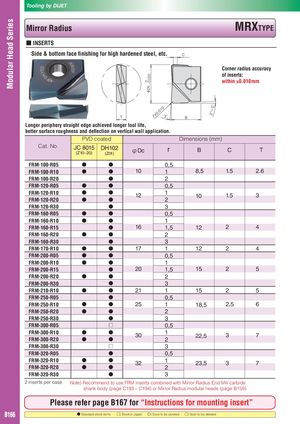

Общий каталог Dijet 2018 - страница 182

Tooling by DIJET
Modular Head Series
Mirror Radius MRXTYPE
■ INSERTS
Side & bottom face finishing for high hardened steel, etc. C

Corner radius accuracy
of inserts:


φ c ­0.020
within ±0.010mm


0
0


３ 〜５
01
0.
T 3 B
Longer periphery straight edge achieved longer tool life,
better surface roughness and deflection on vertical wall application.
PVD coated Dimensions (mm)
Cat. No. JC 8015 DH102
(Z10~20) (Z01)
φDc r B C T
FRM-100-R05 ● ● 0,5
FRM-100-R10 ● ● 10 1 8,5 1.5 2.6
FRM-100-R20 ● 2
FRM-120-R05 ● ● 0,5
FRM-120-R10 ● ● 1
12 10 1.5 3
FRM-120-R20 ● ● 2
FRM-120-R30 ● 3
FRM-160-R05 ● ● 0,5
FRM-160-R10 ● ● 1
FRM-160-R15 ● 16 1,5 12 2 4
FRM-160-R20 ● ● 2
FRM-160-R30 ● 3
FRM-170-R10 ● ● 17 1 12 2 4
FRM-200-R05 ● ● 0,5
FRM-200-R10 ● ● 1
FRM-200-R15 ● 20 1,5 15 2 5
FRM-200-R20 ● ● 2
FRM-200-R30 ● 3
FRM-210-R10 ● ● 21 1 15 2 5
FRM-250-R05 ● 0,5
FRM-250-R10 ● ● 25 1 18,5 2.5 6
FRM-250-R20 ● ● 2
FRM-250-R30 ● 3
FRM-300-R05 □ 0,5
FRM-300-R10 ● ● 1
30 22,5 3 7
FRM-300-R20 ● ● 2
FRM-300-R30 □ 3
FRM-320-R05 ● 0,5
FRM-320-R10 ● ● 1
32 23,5 3 7
FRM-320-R20 ● ● 2
FRM-320-R30 ● 3
2 inserts per case. Note) Recommend to use FRM inserts combined with Mirror Radius End Mill carbide
shank body (page C193 – C194) or Mirror Radius modular heads (page B159).

Please refer page B167 for “Instructions for mounting insert”
B166 ● Standard stock items □: Stock in Japan ◎: Soon to be stocked ○: Soon to be deleted
