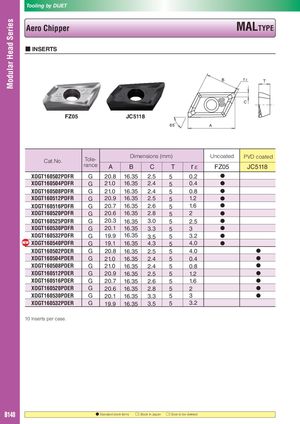

Общий каталог Dijet 2018 - страница 164

■ InSERTS ■

B rε T

C FZ05 JC5118 65ﾟ A

Dimensions (mm) Dimensions (mm) Uncoated Uncoated PVD coated PVD coated

Cat.No. Tole- Tole-

Cat. No. rance rε

rance A A B TBC CT rε FZ05 FZ05 JC5118 JC5118

XOGT160502PDFR G 20.8 16.35 2.5 5 0.2 ●

XOGT160504PDFR G 21.0 16.35 2.4 5 0.4 ●

XOGT160508PDFR G 21.0 16.35 2.4 5 0.8 ●

XOGT160512PDFR G 20.9 16.35 2.5 5 1.2 ●

XOGT160516PDFR G 20.7 16.35 2.6 5 1.6 ●

XOGT160520PDFR G 20.6 16.35 2.8 5 2 ●

XOGT160525PDFR G 20.3 16.35 3.0 5 2.5 ●

XOGT160530PDFR G 20.1 16.35 3.3 5 3 ●

XOGT160532PDFR G 19.9 16.35 3.5 5 3.2 ●

XOGT160540PDFR G 19.1 16.35 4.3 5 4.0 ●

XOGT160502PDER G 20.8 16.35 2.5 5 4.0 ●

XOGT160504PDER G 21.0 16.35 2.4 5 0.4 ●

XOGT160508PDER G 21.0 16.35 2.4 5 0.8 ●

XOGT160512PDER G 20.9 16.35 2.5 5 1.2 ●

XOGT160516PDER G 20.7 16.35 2.6 5 1.6 ●

XOGT160520PDER G 20.6 16.35 2.8 5 2 ●

XOGT160530PDER G 20.1 16.35 3.3 5 3 ●

XOGT160532PDER G 19.9 16.35 3.5 5 3.2

10 inserts per case 10 Inserts per case.

B036 ●：Standard stock items □：Stock in Japan ◎：Soon to be stocked ○：Soon to be deleted ※ : Production after order received
