Tooling by DIJET


Modular Head Series

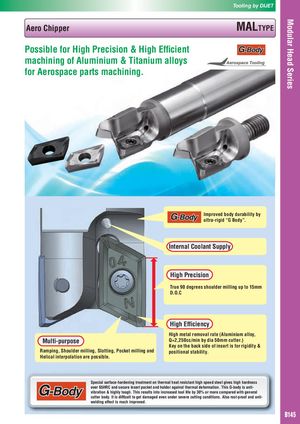

Aero Chipper MALTYPE
Possible for High Precision & High Efficient
machining of Aluminium & Titanium alloys
for Aerospace parts machining.


Improved body durability by
ultra-rigid “G Body”.


Internal Coolant Supply

High Precision
True 90 degrees shoulder milling up to 15mm
D.O.C


High Efficiency
High metal removal rate (Aluminium alloy,
Multi-purpose Q=2,250cc/min by dia 50mm cutter.)
Key on the back side of insert is for rigidity &
Ramping, Shoulder milling, Slotting, Pocket milling and positional stability.
Helical interpolation are possible.


Special surface-hardening treatment on thermal heat resistant high speed steel gives high hardness
over 65HRC and secure insert pocket and holder against thermal deformation. This G-body is anti-
vibration & highly tough. This results into increased tool life by 30% or more compared with general
cutter body. It is difficult to get damaged even under severe cutting conditions. Also rust-proof and anti-
welding effect is much improved.

B145
