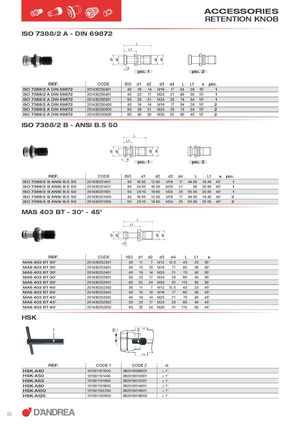

ACCESSORIES RETENTION KNOB ISO 7388/2 A - DIN 69872 pic. 1 pic. 2 REF. CODE ISO d1 d2 d3 d4 L L1 a pic. ISO 7388/2 A DIN 69872 201430250401 40 19 14 M16 17 54 26 15° 1 ISO 7388/2 A DIN 69872 201430250451 45 23 17 M20 21 65 30 15° 1 ISO 7388/2 A DIN 69872 201430250501 50 28 21 M24 25 74 34 15° 1 ISO 7388/2 A DIN 69872 201430250400 40 19 14 M16 17 54 26 15° 2 ISO 7388/2 A DIN 69872 201430250500 50 28 21 M24 25 74 34 15° 2 ISO 7388/2 A DIN 69872 201430250600 60 40 30 M30 32 90 40 15° 2 ISO 7388/2 B - ANSI B.5 50 pic. 1 pic. 2 REF. CODE ISO d1 d2 d3 d4 L L1 a pic. ISO 7388/2 B ANSI B.5 50 201430251401 40 18.95 12.95 M16 17 44.50 16.40 45° 1 ISO 7388/2 B ANSI B.5 50 201430251451 45 24.05 16.30 M20 21 56 20.95 45° 1 ISO 7388/2 B ANSI B.5 50 201430251501 50 29.10 19.60 M24 25 65.50 25.55 45° 1 ISO 7388/2 B ANSI B.5 50 201430251400 40 18.95 12.95 M16 17 44.50 16.40 45° 2 ISO 7388/2 B ANSI B.5 50 201430251500 50 29.10 19.60 M24 25 65.50 25.55 45° 2 MAS 403 BT - 30° - 45° REF. CODE ISO d1 d2 d3 d4 L L1 a MAS 403 BT 30° 201430252301 30 11 7 M12 12.5 43 23 30° MAS 403 BT 30° 201430252401 40 15 10 M16 17 60 35 30° MAS 403 BT 30° 201430252451 45 19 14 M20 21 70 40 30° MAS 403 BT 30° 201430252501 50 23 17 M24 25 85 45 30° MAS 403 BT 30° 201430252601 60 32 24 M30 31 115 65 30° MAS 403 BT 45° 201430252302 30 11 7 M12 12.5 43 23 45° MAS 403 BT 45° 201430252402 40 15 10 M16 17 60 35 45° MAS 403 BT 45° 201430252452 45 19 14 M20 21 70 40 45° MAS 403 BT 45° 201430252502 50 23 17 M24 25 85 45 45° MAS 403 BT 45° 201430252602 60 32 24 M30 31 115 65 45° HSK 1 2 REF. CODE 1 CODE 2 D HSK-A40 101501101000 382019008001 ± 1° HSK-A50 101501101400 382019010001 ± 1° HSK-A63 101501101600 382019012001 ± 1° HSK-A80 101501101800 382019014001 ± 1° HSK-A100 101501102200 382019016001 ± 1° HSK-A125 101501102800 382019018000 ± 1° 80 D
