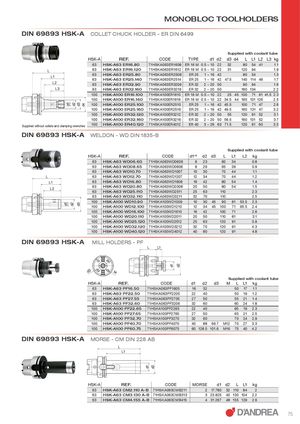

MONOBLOC TOOLHOLDERS DIN 69893 HSK-A COLLET CHUCK HOLDER - ER DIN 6499 Supplied with coolant tube HSK-A REF. CODE TYPE d1 d2 d3 d4 L L1 L2 L3 kg 63 HSK-A63 ER16.80 71HSKA063ER1608 ER 16 M 0.5 ~ 10 22 32 80 54 41 1.1 63 HSK-A63 ER16.120 71HSKA063ER1612 ER 16 M 0.5 ~ 10 22 31 120 94 1.9 63 HSK-A63 ER25.80 71HSKA063ER2508 ER 25 1 ~ 16 42 80 54 1.3 63 HSK-A63 ER25.140 71HSKA063ER2514 ER 25 1 ~ 16 42 47.5 140 114 46 1.7 63 HSK-A63 ER32.90 71HSKA063ER3209 ER 32 2 ~ 20 50 90 64 1.6 63 HSK-A63 ER32.160 71HSKA063ER3216 ER 32 2 ~ 20 50 160 134 2.2 100 HSK-A100 ER16.100 71HSKA100ER1610 ER 16 M 0.5 ~ 10 22 25 45 100 71 61 41.5 2.3 100 HSK-A100 ER16.160 71HSKA100ER1616 ER 16 M 0.5 ~ 10 22 34.5 44 160 131 126 2.5 100 HSK-A100 ER25.100 71HSKA100ER2510 ER 25 1 ~ 16 42 45.5 100 71 47 2.6 100 HSK-A100 ER25.160 71HSKA100ER2516 ER 25 1 ~ 16 42 49.5 160 131 47 3.2 100 HSK-A100 ER32.120 71HSKA100ER3212 ER 32 2 ~ 20 50 55 120 91 52 3.1 100 HSK-A100 ER32.160 71HSKA100ER3216 ER 32 2 ~ 20 50 56.5 160 131 52 3.7 Supplied without collets and clamping wrenches 100 HSK-A100 ER40.120 71HSKA100ER4012 ER 40 3 ~ 26 63 71.5 120 91 60 3.5 DIN 69893 HSK-A WELDON - WD DIN 1835-B Supplied with coolant tube HSK-A REF. CODE d1H5 d2 d3 L L1 L2 kg 63 HSK-A63 WD06.60 71HSKA063WD0606 6 23 60 34 0.8 63 HSK-A63 WD08.65 71HSKA063WD0806 8 26 65 39 0.9 63 HSK-A63 WD10.70 71HSKA063WD1007 10 30 70 44 1.1 63 HSK-A63 WD12.70 71HSKA063WD1207 12 34 70 44 1.2 63 HSK-A63 WD16.80 71HSKA063WD1608 16 42 80 54 1.4 63 HSK-A63 WD20.80 71HSKA063WD2008 20 50 80 54 1.5 63 HSK-A63 WD25.110 71HSKA063WD2511 25 63 110 2.3 63 HSK-A63 WD32.110 71HSKA063WD3211 32 70 110 2.5 100 HSK-A100 WD10.90 71HSKA100WD1009 10 30 45 90 61 53.5 2.3 100 HSK-A100 WD12.100 71HSKA100WD1210 12 34 45 100 71 65.5 2.4 100 HSK-A100 WD16.100 71HSKA100WD1610 16 42 100 71 2.6 100 HSK-A100 WD20.110 71HSKA100WD2011 20 50 110 81 3.1 100 HSK-A100 WD25.120 71HSKA100WD2512 25 63 120 91 3.9 100 HSK-A100 WD32.120 71HSKA100WD3212 32 70 120 91 4.3 100 HSK-A100 WD40.120 71HSKA100WD4012 40 80 120 91 4.8 DIN 69893 HSK-A MILL HOLDERS - PF Supplied with coolant tube HSK-A REF. CODE d1 d2 d3 M L L1 kg 63 HSK-A63 PF16.50 71HSKA063PF1605 16 32 50 17 1.1 63 HSK-A63 PF22.50 71HSKA063PF2205 22 40 50 19 1.2 63 HSK-A63 PF27.55 71HSKA063PF2705 27 50 55 21 1.4 63 HSK-A63 PF32.60 71HSKA063PF3206 32 60 60 24 1.8 100 HSK-A100 PF22.65 71HSKA100PF2265 22 40 65 19 2.3 100 HSK-A100 PF27.65 71HSKA100PF2765 27 50 65 21 2.5 100 HSK-A100 PF32.70 71HSKA100PF3270 32 60 70 24 2.9 100 HSK-A100 PF40.70 71HSKA100PF4070 40 88 66.7 M12 70 27 3.3 100 HSK-A100 PF60.75 71HSKA100PF6075 60 128.5 101.6 M16 75 40 4.2 DIN 69893 HSK-A MORSE - CM DIN 228 AB HSK-A REF. CODE MORSE d1 d2 L L1 kg 63 HSK-A63 CM2.110 A-B 71HSKA063CMB211 2 17.780 32 110 84 2 63 HSK-A63 CM3.130 A-B 71HSKA063CMB313 3 23.825 40 130 104 2.2 63 HSK-A63 CM4.155 A-B 71HSKA063CMB415 4 31.267 48 155 129 2.6 75
