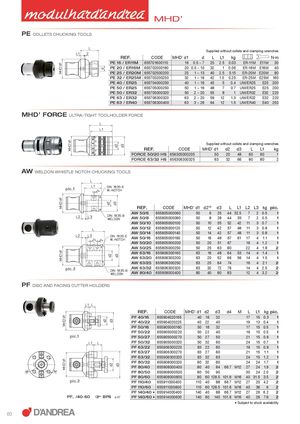

MHD’ PE COLLETS CHUCKING TOOLS Supplied without collets and clamping wrenches REF. CODE MHD’ d1 d L L1 NJ N·m PE 16 / ER11M 655701600110 16 0.5 ~ 7 25 2.5 0.03 ER-11M E11M 30 PE 20 / ER16M 655702000160 20 0.5 ~ 10 32 1 0.06 ER-16M E16M 40 PE 25 / ER20M 655702500200 25 1 ~ 13 40 2.5 0.15 ER-20M E20M 80 PE 32 / ER25M 655703200250 32 1 ~ 16 42 1.5 0.25 ER-25M E25M 160 PE 40 / ER25 655704000250 40 1 ~ 16 45 5 0.4 UM/ER25 E25 200 PE 50 / ER25 655705000250 50 1 ~ 16 48 7 0.7 UM/ER25 E25 200 PE 50 / ER32 655705000320 50 2 ~ 20 55 8 1 UM/ER32 E32 220 PE 63 / ER32 655706300320 63 2 ~ 20 59 12 1.3 UM/ER32 E32 220 PE 63 / ER40 655706300400 63 3 ~ 26 64 12 1.5 UM/ER40 E40 250 MHD’ FORCE ULTRA-TIGHT TOOLHOLDER FORCE Supplied without collets and clamping wrenches REF. CODE MHD’ d1 d2 d3 L L1 NJ FORCE 50/20 HS 656305000205 50 20 48 60 60 1 FORCE 63/32 HS 656306300325 63 32 66 80 80 2 AW WELDON WHISTLE NOTCH CHUCKING TOOLS pic.1 REF. CODE MHD’ d1 d2H5 d3 L L1 L2 L3 NJ pic. AW 50/6 655805000060 50 6 25 44 32.5 7 2 0.5 1 AW 50/8 655805000080 50 8 28 44 33 7 2 0.5 1 AW 50/10 655805000100 50 10 35 52 42 11 3 0.7 1 AW 50/12 655805000120 50 12 42 57 48 11 3 0.8 1 AW 50/14 655805000140 50 14 42 57 48 11 3 0.8 1 AW 50/16 655805000160 50 16 48 67 61 17 4 1.1 1 AW 50/20 655805000200 50 20 51 67 16 4 1.2 1 AW 50/25 655805000250 50 25 63 80 22 4 1.8 2 AW 63/16 655806300160 63 16 48 64 53 14 4 1.4 1 AW 63/20 655806300200 63 20 52 66 56 14 4 1.5 1 AW 63/25 655806300250 63 25 64 74 16 4 2.1 2 pic.2 AW 63/32 655806300320 63 32 72 76 14 4 2.5 2 AW 80/40 655808000400 80 40 80 83 12 4 3.2 2 PF DISC AND FACING CUTTER HOLDERS REF. CODE MHD’ d1 d2 d3 d4 M L L1 NJ pic. PF 40/16 655904020165 40 16 32 17 15 0.3 1 PF 40/22 655904020225 40 22 40 19 13 0.4 1 PF 50/16 655905000160 50 16 32 17 15 0.5 1 PF 50/22 655905000220 50 22 40 19 15 0.5 1 pic.1 PF 50/27 655905000270 50 27 50 21 15 0.6 1 PF 50/32 655905000320 50 32 60 24 15 0.7 1 PF 63/22 655906300220 63 22 60 19 15 0.9 1 PF 63/27 655906300270 63 27 60 21 15 1.1 1 PF 63/32 655906300320 63 32 63 24 15 1.2 1 PF 80/32 655908000320 80 32 80 24 24 1.7 1 PF 80/40 655908000400 80 40 84 66.7 M12 27 24 1.9 2 PF 80/50 655908000500 80 50 90 30 24 2.0 2 PF 80/60 655908000600 80 60 128.5 101.6 M16 40 31.5 3.5 2 pic.2 PF 110/40 655911000400 110 40 88 66.7 M12 27 20 4.2 2 PF 110/60 655911000600 110 60 128.5 101.6 M16 40 36 6 2 PF.. /40-60 ) BPS p.57 PF 140/40 • 655914000400PF 140/60 •655914000600140408866.7 M12 27 26 6.2 214060140101.6M1640267.82 • 6XEMHFWWRVWRFNDYDLODELOLW\ 60
