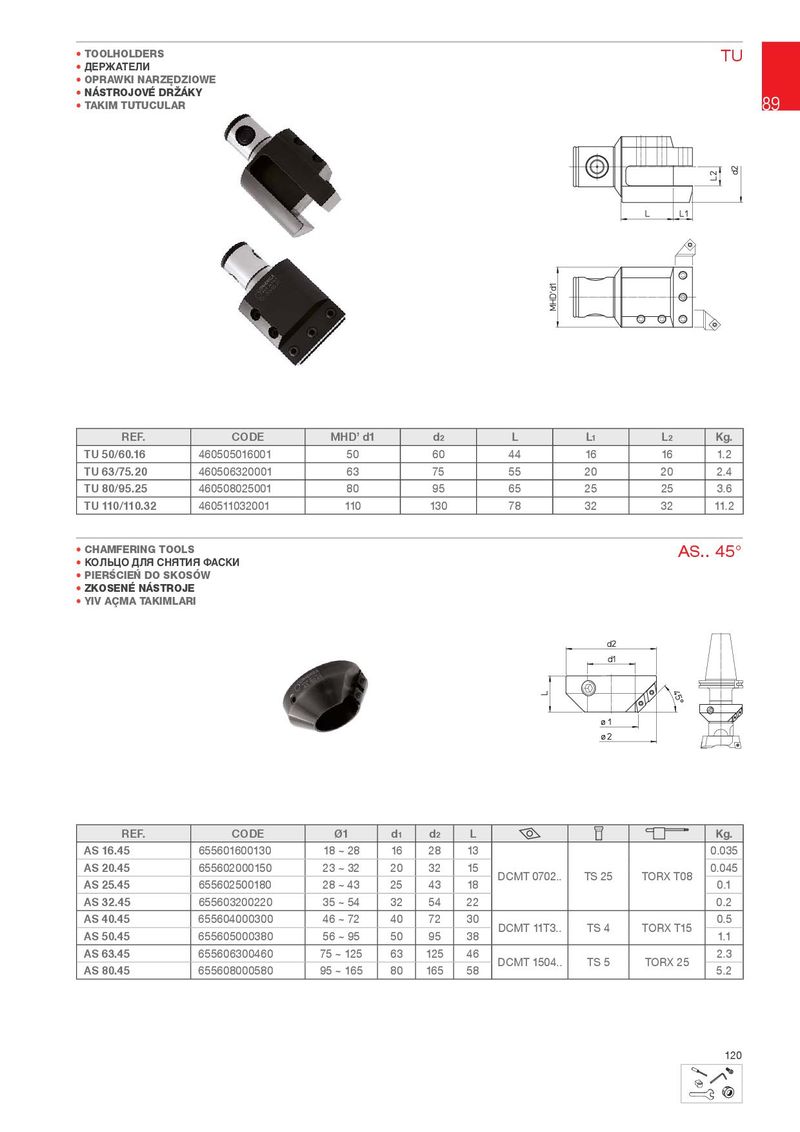

TOOLHOLDERS TU
OPRAW.I NARZ}DZIOWE
NÁSTROJOVÉ DR½Á.Y
TA.IM TUTUCULAR 89

REF.	CODE	MHD’ d1	d2	L	L1	L2	Kg.
TU 50/60.16	460505016001	50	60	44	16	16	1.2
TU 63/75.20	460506320001	63	75	55	20	20	2.4
TU 80/95.25	460508025001	80	95	65	25	25	3.6
TU 110/110.32	460511032001	110	130	78	32	32	11.2

CHAMFERING TOOLS AS.. 45°
КОЛЬЦО ДЛЯ СНЯТИЯ ФАСКИ
PIER¤CIE DO S.OSÓW
Z.OSENÉ NÁSTROJE
YIV AqMA TA.IMLARI

REF.	CODE	Ø1	d1	d2	L				Kg.
AS 16.45	655601600130	18 ~ 28	16	28	13				0.035
AS 20.45	655602000150	23 ~ 32	20	32	15	��	TS 2	TORX T	0.045
AS 25.45	655602500180	28 ~ 43	25	43	18	��	5	08	0.1
AS 32.45	655603200220	35 ~ 54	32	54	22				0.2
AS 40.45	655604000300	46 ~ 72	40	72	30	��	TS 4	TORX T15	0.5
AS 50.45	655605000380	56 ~ 95	50	95	38	��			1.1
AS 63.45	655606300460	75 ~ 125	63	125	46	��	TS	TORX 2	2.3
AS 80.45	655608000580	95 ~ 165	80	165	58	��	5	5	5.2
