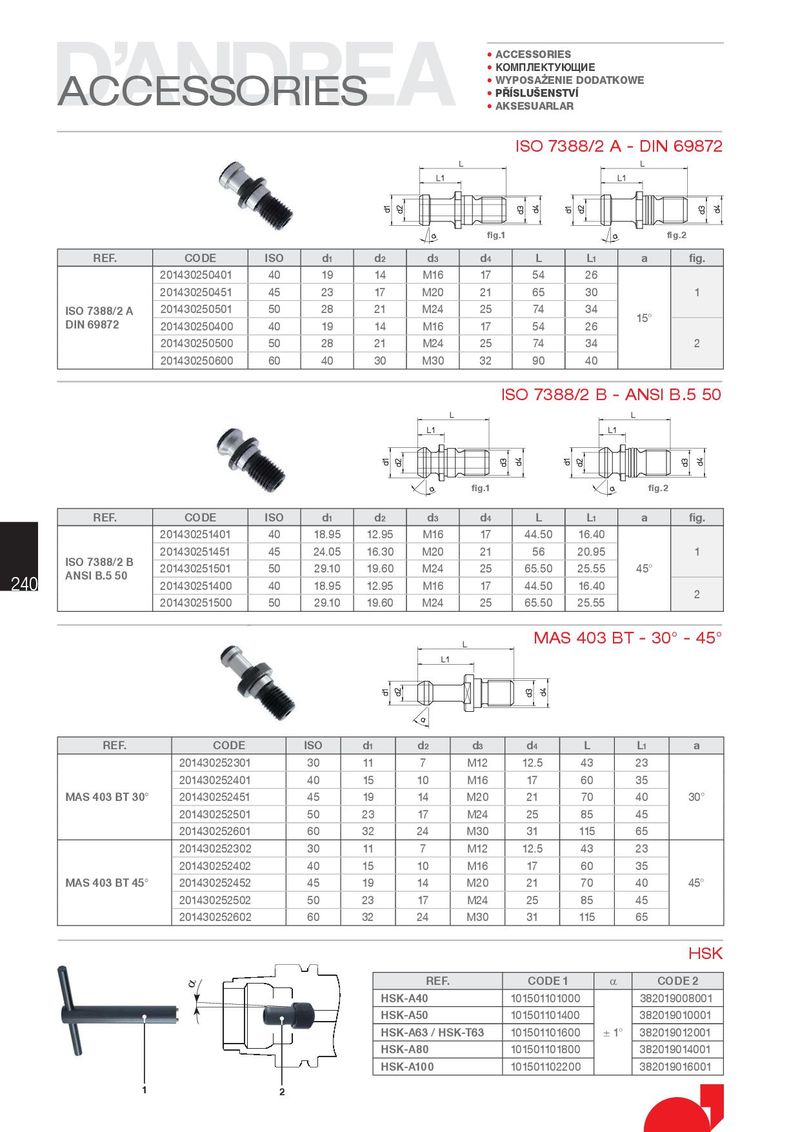

ACCESSORIES WYPOSA¾ENIE DODATKOWE

AKSESUARLAR ISO 7388/2 A - DIN 69872

						fig.1			f	ig.2
REF.	CODE	ISO	d1	d2	d3	d4	L	L1	a	fig.
	201430250401	40	19	14	M16	17	54	26
	201430250451	45	23	17	M20	21	65	30		1
ISO 7388/2 A	201430250501	50	28	21	M24	25	74	34	1°
DIN 69872	201430250400	40	19	14	M16	17	54	26	5
	201430250500	50	28	21	M24	25	74	34		2
	201430250600	60	40	30	M30	32	90	40

ISO 7388/2 B - ANSI B.5 50

						fig.1			fig.2
REF.	CODE	ISO	d1	d2	d3	d4	L	L1	a	fig.
	201430251401	40	18.95	12.95	M16	17	44.50	16.40
	201430251451	45	24.05	16.30	M20	21	56	20.95		1
ISO 7388/2 B ANSI B5 50	201430251501	50	29.10	19.60	M24	25	65.50	25.55	45°
.	201430251400	40	18.95	12.95	M16	17	44.50	16.40
	201430251500	50	29.10	19.60	M24	25	65.50	25.55		2

MAS 403 BT - 30° - 45°

REF.	CODE	ISO	d1	d2	d3	d4	L	L1	a
	201430252301	30	11	7	M12	12.5	43	23
	201430252401	40	15	10	M16	17	60	35
MAS 403 BT 30°	201430252451	45	19	14	M20	21	70	40	30°
	201430252501	50	23	17	M24	25	85	45
	201430252601	60	32	24	M30	31	115	65
	201430252302	30	11	7	M12	12.5	43	23
	201430252402	40	15	10	M16	17	60	35
MAS 403 BT 45°	201430252452	45	19	14	M20	21	70	40	45°
	201430252502	50	23	17	M24	25	85	45
	201430252602	60	32	24	M30	31	115	65

HSK

REF.	CODE 1	�	CODE 2
HSK-A40	101501101000		382019008001
HSK-A50	101501101400		382019010001
HSK-A63 / HSK-T63	101501101600	± 1°	382019012001
HSK-A80	101501101800		382019014001
HSK-A100	101501102200		382019016001
