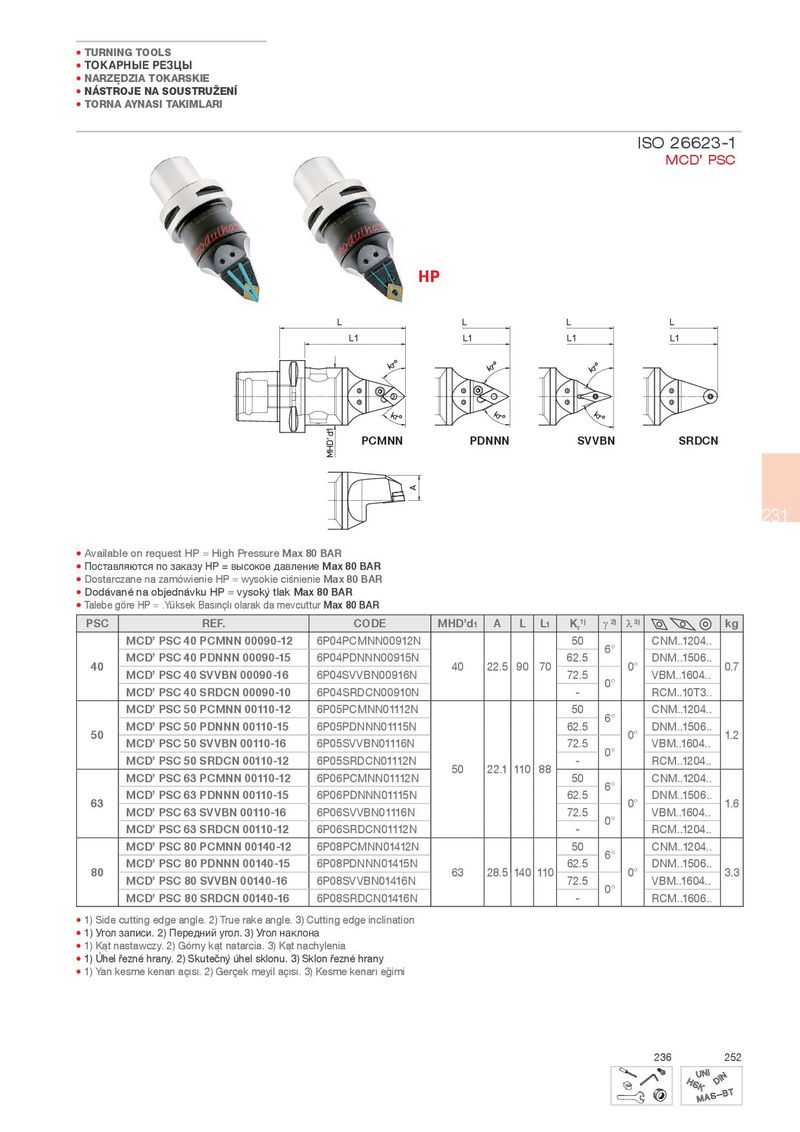

• TURNING TOOLS • ТОКАРНЫЕ РЕЗЦЫ • NARZ}DZIA TOKARSKIE • NÁSTROJE NA SOUSTRU½EN • TORNA AYNASI TAKIMLARI ISO 26623-1 MCD’ PSC HP PCMNN PDNNN SVVBN SRDCN 231 • Available on request HP = High Pressure Max 80 BAR • Поставляются по заказу HP = высокое давление Max 80 BAR • 'RVWDUF]DQHQD]DPÐZLHQLH+3 Z\VRNLHFLŪQLHQLHMax 80 BAR • 'RG¾YDQÆQDREMHGQ¾YNX+3 Y\VRNÚWODNMax 80 BAR • 7DOHEHJÓUH+3 <ÙNVHN%DVIJQÄOIJRODUDNGDPHYFXWWXUMax 80 BAR PSC REF. CODE MHD’d1 A L L1 K r1) J2) O3) kg MCD’ PSC 40 PCMNN 00090-12 6P04PCMNN00912N 50 CNM..1204.. 6° MCD’ PSC 40 PDNNN 00090-15 6P04PDNNN00915N 62.5 DNM..1506.. 40 40 22.5 90 70 0° 0.7 MCD’ PSC 40 SVVBN 00090-16 6P04SVVBN00916N 72.5 VBM..1604.. 0° MCD’ PSC 40 SRDCN 00090-10 6P04SRDCN00910N - RCM..10T3.. MCD’ PSC 50 PCMNN 00110-12 6P05PCMNN01112N 50 CNM..1204.. 6° MCD’ PSC 50 PDNNN 00110-15 6P05PDNNN01115N 62.5 DNM..1506.. 50 0° 1.2 MCD’ PSC 50 SVVBN 00110-16 6P05SVVBN01116N 72.5 VBM..1604.. 0° MCD’ PSC 50 SRDCN 00110-12 6P05SRDCN01112N - RCM..1204.. 50 22.1 110 88 MCD’ PSC 63 PCMNN 00110-12 6P06PCMNN01112N 50 CNM..1204.. 6° MCD’ PSC 63 PDNNN 00110-15 6P06PDNNN01115N 62.5 DNM..1506.. 63 0° 1.6 MCD’ PSC 63 SVVBN 00110-16 6P06SVVBN01116N 72.5 VBM..1604.. 0° MCD’ PSC 63 SRDCN 00110-12 6P06SRDCN01112N - RCM..1204.. MCD’ PSC 80 PCMNN 00140-12 6P08PCMNN01412N 50 CNM..1204.. 6° MCD’ PSC 80 PDNNN 00140-15 6P08PDNNN01415N 62.5 DNM..1506.. 80 63 28.5 140 110 0° 3.3 MCD’ PSC 80 SVVBN 00140-16 6P08SVVBN01416N 72.5 VBM..1604.. 0° MCD’ PSC 80 SRDCN 00140-16 6P08SRDCN01416N - RCM..1606.. • 1) Side cutting edge angle. 2) True rake angle. 3) Cutting edge inclination • 1) Угол записи. 2) Передний угол. 3) Угол наклона • .ĝWQDVWDZF]\ *ÐUQ\NĝWQDWDUFLD .ĝWQDFK\OHQLD •  ·KHOŦH]QÆKUDQ\ 6NXWHĦQÚ×KHOVNORQX 6NORQŦH]QÆKUDQ\ •
