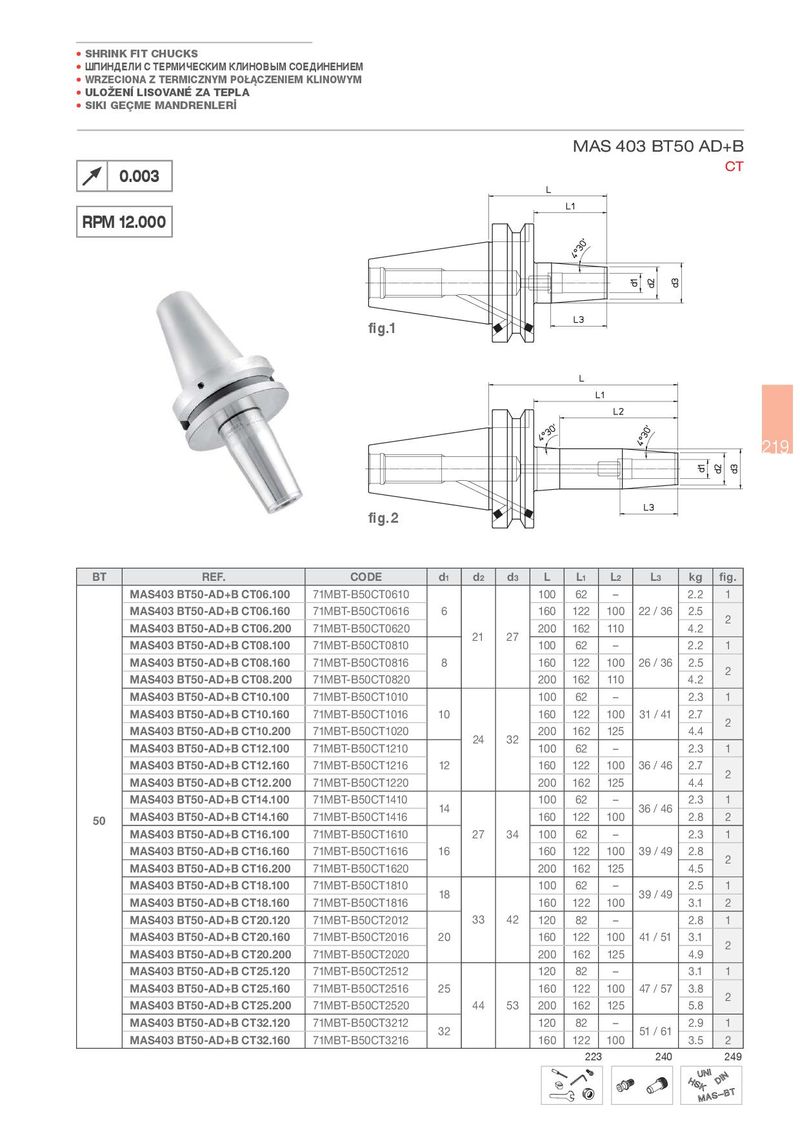

Общий каталог D'ANDREA 2018 - страница 220

• SHRINK FIT CHUCKS • ØÏÈÍÄÅËÈ Ñ ÒÅÐÌÈ×ÅÑÊÈÌ ÊËÈÍÎÂÛÌ ÑÎÅÄÈÍÅÍÈÅÌ • WRZECIONA Z TERMICZNYM PO‘kCZENIEM KLINOWYM • ULO½EN… LISOVANÉ ZA TEPLA • SIKI GEqME MANDRENLERŠ MAS 403 BT50 AD+B 0.003 CT RPM 12.000 fig.1 219 fig.2 BT REF. CODE d1 d2 d3 L L1 L2 L3 kg fig. MAS403 BT50-AD+B CT06.100 71MBT-B50CT0610 100 62 – 2.2 1 MAS403 BT50-AD+B CT06.160 71MBT-B50CT0616 6 160 122 100 22 / 36 2.5 2 MAS403 BT50-AD+B CT06.200 71MBT-B50CT0620 21 27 200 162 110 4.2 MAS403 BT50-AD+B CT08.100 71MBT-B50CT0810 100 62 – 2.2 1 MAS403 BT50-AD+B CT08.160 71MBT-B50CT0816 8 160 122 100 26 / 36 2.5 2 MAS403 BT50-AD+B CT08.200 71MBT-B50CT0820 200 162 110 4.2 MAS403 BT50-AD+B CT10.100 71MBT-B50CT1010 100 62 – 2.3 1 MAS403 BT50-AD+B CT10.160 71MBT-B50CT1016 10 160 122 100 31 / 41 2.7 2 MAS403 BT50-AD+B CT10.200 71MBT-B50CT1020 24 32 200 162 125 4.4 MAS403 BT50-AD+B CT12.100 71MBT-B50CT1210 100 62 – 2.3 1 MAS403 BT50-AD+B CT12.160 71MBT-B50CT1216 12 160 122 100 36 / 46 2.7 2 MAS403 BT50-AD+B CT12.200 71MBT-B50CT1220 200 162 125 4.4 MAS403 BT50-AD+B CT14.100 71MBT-B50CT1410 14 100 62 – 36 / 46 2.3 1 50 MAS403 BT50-AD+B CT14.160 71MBT-B50CT1416 160 122 100 2.8 2 MAS403 BT50-AD+B CT16.100 71MBT-B50CT1610 27 34 100 62 – 2.3 1 MAS403 BT50-AD+B CT16.160 71MBT-B50CT1616 16 160 122 100 39 / 49 2.8 2 MAS403 BT50-AD+B CT16.200 71MBT-B50CT1620 200 162 125 4.5 MAS403 BT50-AD+B CT18.100 71MBT-B50CT1810 18 100 62 – 39 / 49 2.5 1 MAS403 BT50-AD+B CT18.160 71MBT-B50CT1816 160 122 100 3.1 2 MAS403 BT50-AD+B CT20.120 71MBT-B50CT2012 33 42 120 82 – 2.8 1 MAS403 BT50-AD+B CT20.160 71MBT-B50CT2016 20 160 122 100 41 / 51 3.1 2 MAS403 BT50-AD+B CT20.200 71MBT-B50CT2020 200 162 125 4.9 MAS403 BT50-AD+B CT25.120 71MBT-B50CT2512 120 82 – 3.1 1 MAS403 BT50-AD+B CT25.160 71MBT-B50CT2516 25 160 122 100 47 / 57 3.8 2 MAS403 BT50-AD+B CT25.200 71MBT-B50CT2520 44 53 200 162 125 5.8 MAS403 BT50-AD+B CT32.120 71MBT-B50CT3212 32 120 82 – 51 / 61 2.9 1 MAS403 BT50-AD+B CT32.160 71MBT-B50CT3216 160 122 100 3.5 2  240 249
