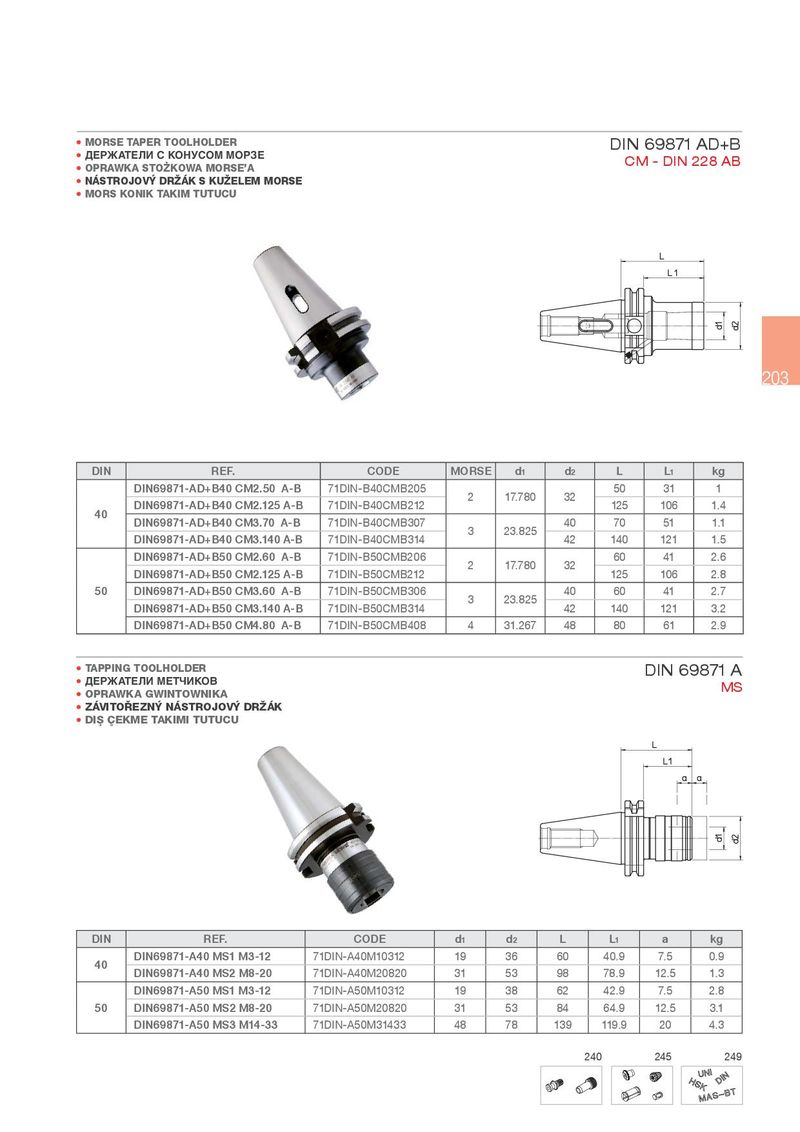

- MORSE TAPER TOOLHOLDER DIN 69871 AD+B
- ДЕРЖАТЕЛИ С КОНУСОМ МОРЗЕ CM - DIN 228 AB
- OPRAWKA STO¾KOWA MORSE’A
- NÁSTROJOV¹ DR½ÁK S KU½ELEM MORSE
- MORS KONIK TAKIM TUTUCU
203
| DIN | REF. | CODE | MORSE | d1 | d2 | L | L1 | kg |
| DIN69871-AD+B40 CM2.50 A-B | 71DIN-B40CMB205 | 2 | 17780 | 32 | 50 | 31 | 1 | |
| 40 | DIN69871-AD+B40 CM2.125 A-B | 71DIN-B40CMB212 | . | 125 | 106 | 1.4 | ||
| DIN69871-AD+B40 CM3.70 A-B | 71DIN-B40CMB307 | 3 | 23825 | 40 | 70 | 51 | 1.1 | |
| DIN69871-AD+B40 CM3.140 A-B | 71DIN-B40CMB314 | . | 42 | 140 | 121 | 1.5 | ||
| DIN69871-AD+B50 CM2.60 A-B | 71DIN-B50CMB206 | 2 | 17780 | 32 | 60 | 41 | 2.6 | |
| DIN69871-AD+B50 CM2.125 A-B | 71DIN-B50CMB212 | . | 125 | 106 | 2.8 | |||
| 50 | DIN69871-AD+B50 CM3.60 A-B | 71DIN-B50CMB306 | 3 | 23825 | 40 | 60 | 41 | 2.7 |
| DIN69871-AD+B50 CM3.140 A-B | 71DIN-B50CMB314 | . | 42 | 140 | 121 | 3.2 | ||
| DIN69871-AD+B50 CM4.80 A-B | 71DIN-B50CMB408 | 4 | 31.267 | 48 | 80 | 61 | 2.9 |
- TAPPING TOOLHOLDER DIN 69871 A
- ДЕРЖАТЕЛИ МЕТЧИКОВ MS
- OPRAWKA GWINTOWNIKA
- ZÁVITO¢EZN¹ NÁSTROJOV¹ DR½ÁK
- DI§ qEKME TAKIMI TUTUCU
| DIN | REF. | CODE | d1 | d2 | L | L1 | a | kg |
| 40 | DIN69871-A40 MS1 M3-12 | 71DIN-A40M10312 | 19 | 36 | 60 | 40.9 | 7.5 | 0.9 |
| DIN69871-A40 MS2 M8-20 | 71DIN-A40M20820 | 31 | 53 | 98 | 78.9 | 12.5 | 1.3 | |
| DIN69871-A50 MS1 M3-12 | 71DIN-A50M10312 | 19 | 38 | 62 | 42.9 | 7.5 | 2.8 | |
| 50 | DIN69871-A50 MS2 M8-20 | 71DIN-A50M20820 | 31 | 53 | 84 | 64.9 | 12.5 | 3.1 |
| DIN69871-A50 MS3 M14-33 | 71DIN-A50M31433 | 48 | 78 | 139 | 119.9 | 20 | 4.3 |
