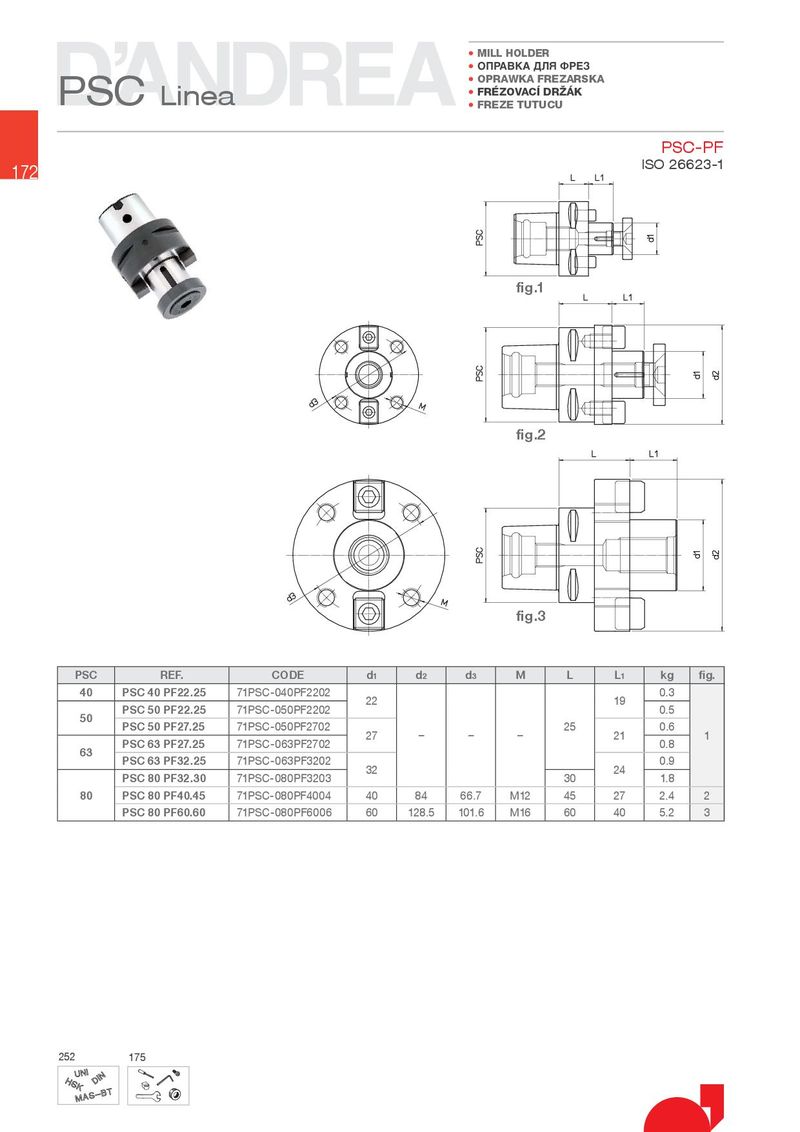

Общий каталог D'ANDREA 2018 - страница 173

• MILL HOLDER
• ОПРАВКА ДЛЯ ФРЕЗ
• OPRAW.A FREZARS.A
PSC Linea • FRÉZOVAC DR½Á.
• FREZE TUTUCU

PSC-PF
ISO 26623-1
172


fig.1


fig.2


fig.3

PSC REF. CODE d1 d2 d3 M L L1 kg fig.
40 PSC 40 PF22.25 36&3) 0.3
22 19
PSC 50 PF22.25 36&3) 0.5
50
PSC 50 PF27.25 36&3) 25 0.6
27 – – – 21 1
PSC 63 PF27.25 36&3) 0.8
63
PSC 63 PF32.25 36&3) 0.9
32 24
PSC 80 PF32.30 36&3) 30 1.8
80 PSC 80 PF40.45 36&3) 40 84 66.7 M12 45 27 2.4 2
PSC 80 PF60.60 36&3) 60 128.5 101.6 M16 60 40 5.2 3


252 175
