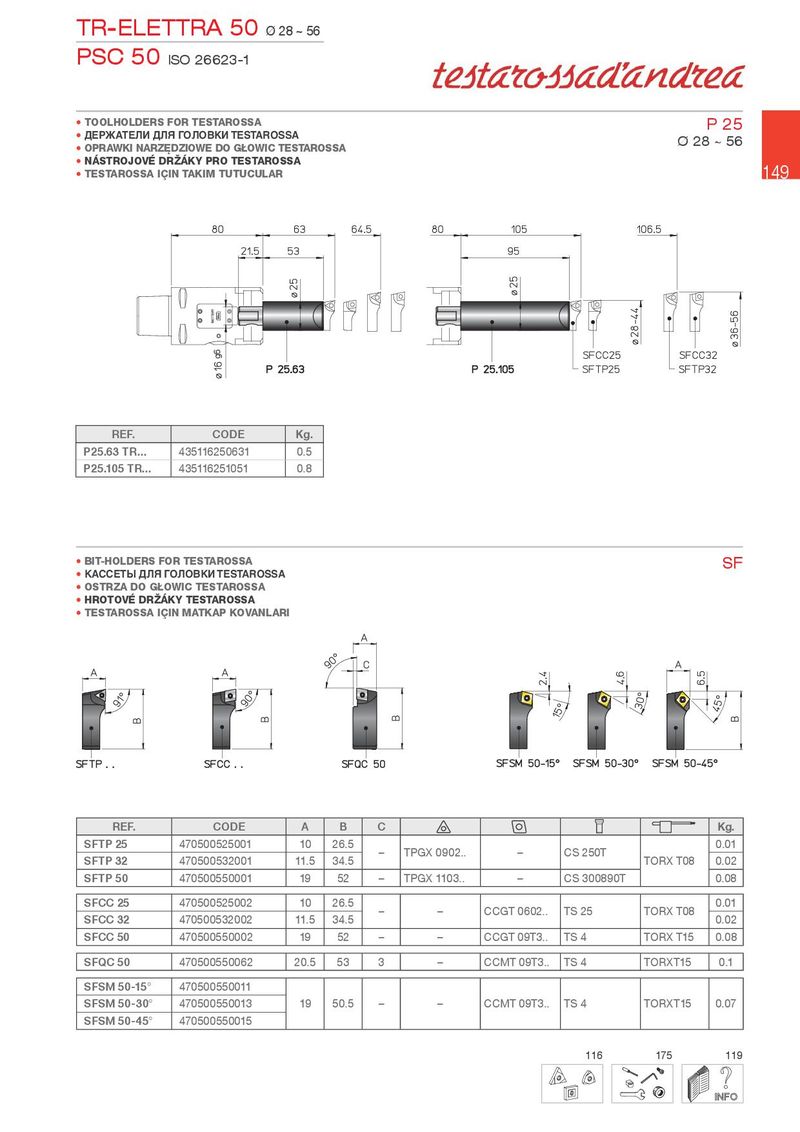

Общий каталог D'ANDREA 2018 - страница 150
Навигация
Общий каталог D'andrea 2022
- TOOLHOLDERS FOR TESTAROSSA P 25
- ДЕРЖАТЕЛИ ДЛЯ ГОЛОВКИ TESTAROSSA Ø 28 ~ 56
- OPRAW.I NARZ}DZIOWE DO GOWIC TESTAROSSA
- NÁSTROJOVÉ DR½Á.Y PRO TESTAROSSA
- TESTAROSSA IqIN TA.IM TUTUCULAR 149
| REF. | CODE | Kg. |
| P25.63 TR... | 435116250631 | 0.5 |
| P25.105 TR... | 435116251051 | 0.8 |
- BIT-HOLDERS FOR TESTAROSSA SF
- КАССЕТЫ ДЛЯ ГОЛОВКИ TESTAROSSA
- OSTRZA DO GOWIC TESTAROSSA
- HROTOVÉ DR½Á.Y TESTAROSSA
- TESTAROSSA IqIN MAT.AP .OVANLARI
| REF. | CODE | A | B | C | Kg. | ||||
| SFTP 25 | 470500525001 | 10 | 26.5 | – | TPGX 0902 | – | CS 250T | 0.01 | |
| SFTP 32 | 470500532001 | 11.5 | 34.5 | .. | TORX T08 | 0.02 | |||
| SFTP 50 | 470500550001 | 19 | 52 | – | TPGX 1103.. | – | CS 300890T | 0.08 | |
| SFCC 25 | 470500525002 | 10 | 26.5 | – | – | CCGT 0602 | TS 25 | TORX T08 | 0.01 |
| SFCC 32 | 470500532002 | 11.5 | 34.5 | .. | 0.02 | ||||
| SFCC 50 | 470500550002 | 19 | 52 | – | – | CCGT 09T3.. | TS 4 | TORX T15 | 0.08 |
| SFQC 50 | 470500550062 | 20.5 | 53 | 3 | – | CCMT 09T3.. | TS 4 | TORXT15 | 0.1 |
| SFSM 50-15° | 470500550011 | ||||||||
| SFSM 50-30° | 470500550013 | 19 | 50.5 | – | – | CCMT 09T3.. | TS 4 | TORXT15 | 0.07 |
| SFSM 50-45° | 470500550015 | ||||||||
| 116 | 175 | 119 |
