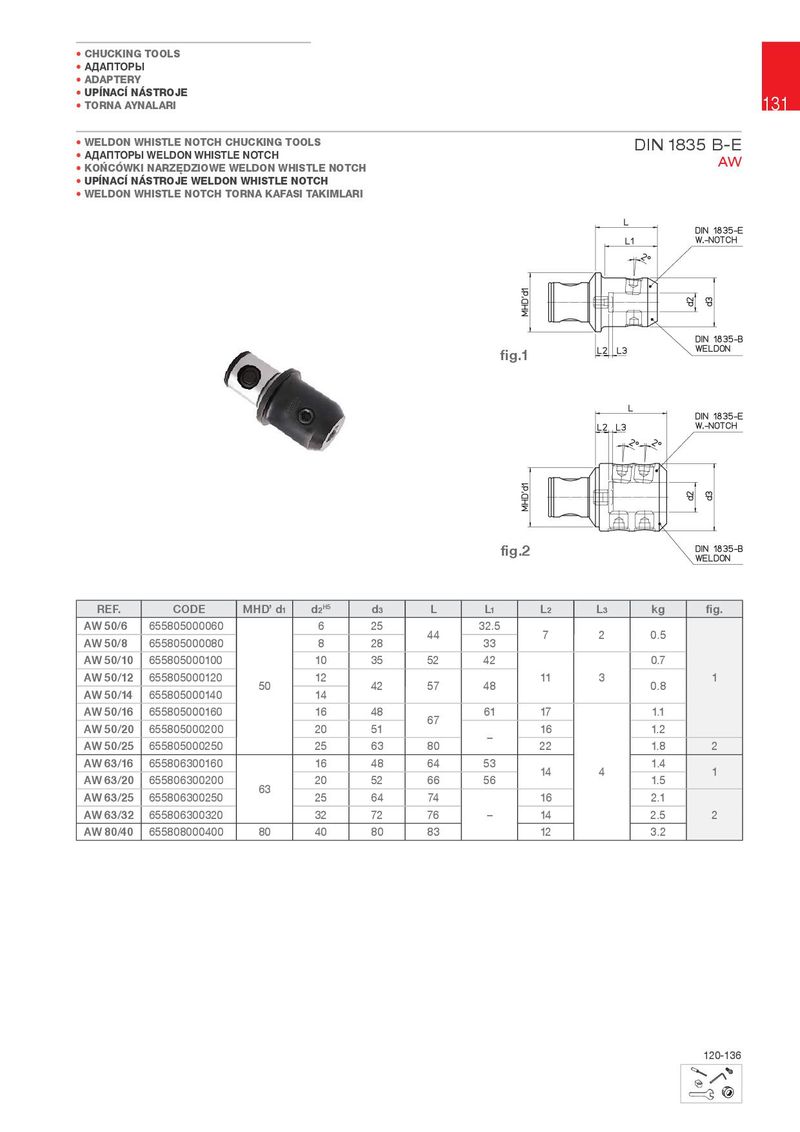

TORNA AYNALARI 131
WELDON WHISTLE NOTCH CHUC.ING TOOLS DIN 1835 B-E
АДАПТОРЫ WELDON WHISTLE NOTCH AW
.OCÓW.I NARZ}DZIOWE WELDON WHISTLE NOTCH
UPNAC NÁSTROJE WELDON WHISTLE NOTCH
WELDON WHISTLE NOTCH TORNA .AFASI TA.IMLARI

fig.1

fig.2

REF.	CODE	MHD’ d1	d2H5	d3	L	L1	L2	L3	kg	fig.
AW 50/6	655805000060		6	25	44	32.5	7	2	05
AW 50/8	655805000080		8	28		33			.
AW 50/10	655805000100		10	35	52	42			0.7
AW 50/12	655805000120	50	12	42	57	48	11	3	08	1
AW 50/14	655805000140		14						.
AW 50/16	655805000160		16	48	67	61	17		1.1
AW 50/20	655805000200		20	51			16		1.2
AW 50/25	655805000250		25	63	80	�	22		1.8	2
AW 63/16	655806300160		16	48	64	53	14	4	1.4	1
AW 63/20	655806300200		20	52	66	56			1.5
AW 63/25	655806300250	63	25	64	74		16		2.1
AW 63/32	655806300320		32	72	76	�	14		2.5	2
AW 80/40	655808000400	80	40	80	83		12		3.2
