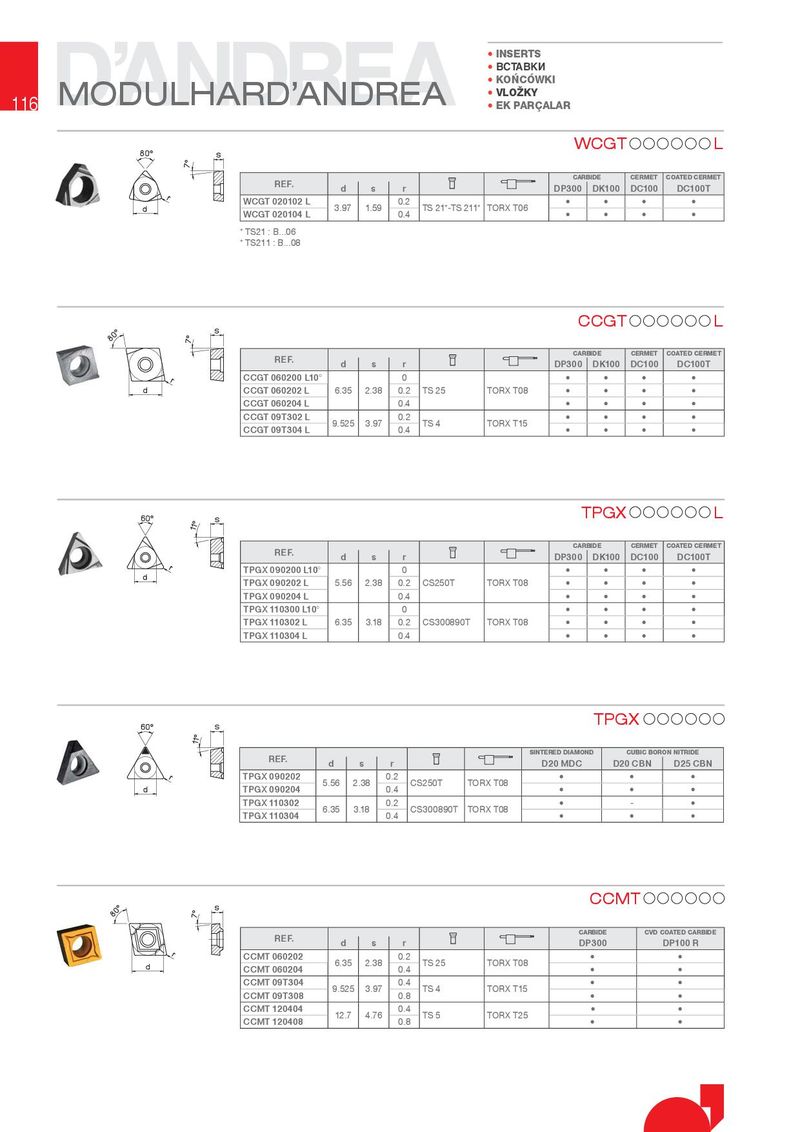

Общий каталог D'ANDREA 2018 - страница 117
Навигация
Общий каталог D'andrea 2022
- INSERTS
- ВСТАВКИ
MODULHARD’ANDREA .OCÓW.I
- VLO½.Y
116 E. PARqALAR
| W | CGT | L | ||||||
| REF. | d | s | r | CARB DP300 | IDE DK100 | CERMET DC100 | COATED CERMET DC100T | |
| WCGT 020102 L | 397 | 159 | 0.2 | TS 21TS 211TORX T06 | • | • | • | • |
| WCGT 020104 L | . | . | 0.4 | - | • | • | • | • |
76% 76%
| C | CGT | L | |||||||
| REF. | d | s | r | CAR DP300 | BIDE DK100 | CERMET DC100 | COATED CERMET DC100T | ||
| CCGT 060200 L10° | 0 | • | • | • | • | ||||
| CCGT 060202 L | 6.35 | 2.38 | 0.2 | TS 25 | TORX T08 | • | • | • | • |
| CCGT 060204 L | 0.4 | • | • | • | • | ||||
| CCGT 09T302 L | 9525 | 397 | 0.2 | TS 4 | TORX T15 | • | • | • | • |
| CCGT 09T304 L | . | . | 0.4 | • | • | • | • |
| T | PGX | L | |||||||
| REF. | d | s | r | CAR DP300 | BIDE DK100 | CERMET DC100 | COATED CERMET DC100T | ||
| TPGX 090200 L10° | 0 | • | • | • | • | ||||
| TPGX 090202 L | 5.56 | 2.38 | 0.2 | ������� | TORX T08 | • | • | • | • |
| TPGX 090204 L | 0.4 | • | • | • | • | ||||
| TPGX 110300 L10° | 0 | • | • | • | • | ||||
| TPGX 110302 L | 6.35 | 3.18 | 0.2 | ���������� | TORX T08 | • | • | • | • |
| TPGX 110304 L | 0.4 | • | • | • | • |
| T | PGX | |||||||
| REF. | d | s | r | SINTERED DIAMOND D20 MDC | CUBIC BOR D20 CBN | ON NITRIDE D25 CBN | ||
| TPGX 090202 | 556 | 238 | 0.2 | ������ | TORX T08 | • | • | • |
| TPGX 090204 | . | . | 0.4 | • | • | • | ||
| TPGX 110302 | 635 | 318 | 0.2 | ��������� | TORX T08 | • | - | • |
| TPGX 110304 | . | . | 0.4 | • | • | • |
| CCMT | |||||||
| REF. | d | s | r | CARBIDE DP300 | CVD COATED CARBIDE DP100 R | ||
| CCMT 060202 | 635 | 238 | 0.2 | TS 25 | TORX T08 | • | • |
| CCMT 060204 | . | . | 0.4 | • | • | ||
| CCMT 09T304 | 9525 | 397 | 0.4 | TS 4 | TORX T15 | • | • |
| CCMT 09T308 | . | . | 0.8 | • | • | ||
| CCMT 120404 | 127 | 476 | 0.4 | TS 5 | TORX T25 | • | • |
| CCMT 120408 | . | . | 0.8 | • | • |
