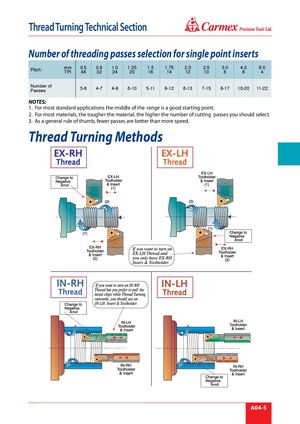

® Thread Turning Technical Section Number of threading passes selection for single point inserts mm 0.5 0.8 1.0 1.25 1.5 1.75 2.0 2.5 3.0 4.0 6.0 Pitch: TPI 48 32 24 20 16 14 12 10 8 6 4 Number of 3-6 4-7 4-9 6-10 5-11 9-12 6-13 7-15 8-17 10-20 11-22 Passes NOTES: 1. For most standard applications the middle of the range is a good starting point. 2. For most materials, the tougher the material, the higher the number of cutting passes you should select. 3. As a general rule of thumb, fewer passes are better than more speed. Thread Turning Methods A04-5
