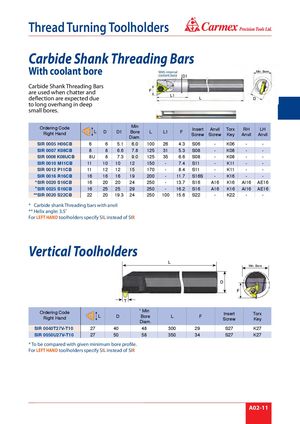

Каталог Carmex общий 2021 - страница 75
Навигация
Каталог Carmex резьбофрезы из твёрдого сплава для обработки закалённых материалов HardCut
Каталог Carmex корпуса резьбофрез для призматических пластин
Каталог Carmex инструмент для вихревого нарезания резьбы
Каталог Carmex державки для наружной обработки
Каталог Carmex спиральные резьбофрезы со сменными пластинами
Carbide Shank Threading Bars
With coolant bore
With internal Min. Bore coolant bore D1
Carbide Shank Threading Bars
are used when chatter and F deflection are expected due L1 L D
to long overhang in deep
small bores.
| Ordering Code Right Hand | L | D | D1 | Min Bore Diam. | L | L1 | F | Insert Screw | Anvil Screw | Torx Key | RH Anvil | LH Anvil |
| SIR 0005 H06CB | 6 | 6 | 5.1 | 6.0 | 100 | 26 | 4.3 | S06 | - | K06 | - | - |
| SIR 0007 K08CB | 8 | 8 | 6.6 | 7.8 | 125 | 31 | 5.3 | S08 | - | K08 | - | - |
| SIR 0008 K08UCB | 8U | 8 | 7.3 | 9.0 | 125 | 35 | 6.6 | S08 | - | K08 | - | - |
| SIR 0010 M11CB | 11 | 10 | 10 | 12 | 150 | - | 7.4 | S11 | - | K11 | - | - |
| SIR 0012 P11CB | 11 | 12 | 12 | 15 | 170 | - | 8.4 | S11 | - | K11 | - | - |
| SIR 0016 R16CB | 16 | 16 | 16 | 19 | 200 | - | 11.7 | S16S | - | K16 | - | - |
| SIR 0020 S16CB | 16 | 20 | 20 | 24 | 250 | - | 13.7 | S16 | A16 | K16 | AI16 | AE16 |
| SIR 0025 S16CB | 16 | 25 | 25 | 29 | 250 | - | 16.2 | S16 | A16 | K16 | AI16 | AE16 |
| SIR 0020 S22CB | 22 | 20 | 19.3 | 24 | 250 | 100 | 15.6 | S22 | - | K22 | - | - |
- Carbide shank Threading bars with anvil
** Helix angle: 3.5˚
For LEFT HAND toolholders specify SIL instead of SIR
Vertical Toolholders
| Min. Bore | |||||||
| Ordering Code Right Hand | L | D | Min Bore Diam. | L | F | Insert Screw | Torx Key |
| SIR 0040T27V-T10 | 27 | 40 | 48 | 300 | 29 | S27 | K27 |
| SIR 0050U27V-T10 | 27 | 50 | 58 | 350 | 34 | S27 | K27 |
- To be compared with given minimum bore profile.
