Каталог Carmex общий 2021 - страница 442

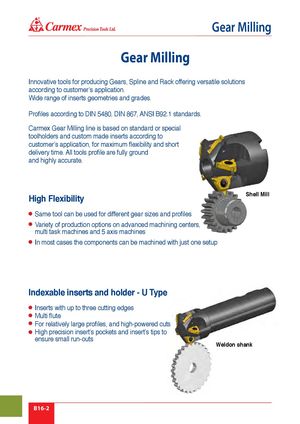

® Gear Milling Gear Milling Innovative tools for producing Gears, Spline and Rack offering versatile solutions according to customer’s application. Wide range of inserts geometries and grades. Profiles according to DIN 5480, DIN 867, ANSI B92.1 standards. Carmex Gear Milling line is based on standard or special toolholders and custom made inserts according to customer’s application, for maximum flexibility and short delivery time. All tools profile are fully ground and highly accurate. High Flexibility Shell Mill Same tool can be used for different gear sizes and profiles Variety of production options on advanced machining centers, multi task machines and 5 axis machines In most cases the components can be machined with just one setup Indexable inserts and holder - U Type Inserts with up to three cutting edges Multi flute For relatively large profiles, and high-powered cuts High precision insert’s pockets and insert’s tips to ensure small run-outs Weldon shank B16-2
