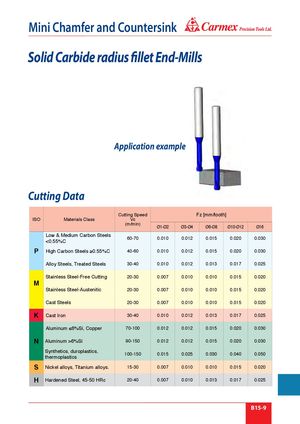

® Mini Chamfer and Countersink Solid Carbide radius fillet End-Mills Application example Cutting Data Cutting Speed Fz [mm/tooth] ISO Materials Class Vc (m/min) Ø1-Ø2 Ø3-Ø4 Ø6-Ø8 Ø10-Ø12 Ø16 Low & Medium Carbon Steels 60-70 0.010 0.012 0.015 0.020 0.030 <0.55%C P High Carbon Steels ≥0.55%C 40-60 0.010 0.012 0.015 0.020 0.030 Alloy Steels, Treated Steels 30-40 0.010 0.012 0.013 0.017 0.025 Stainless Steel-Free Cutting 20-30 0.007 0.010 0.010 0.015 0.020 M Stainless Steel-Austenitic 20-30 0.007 0.010 0.010 0.015 0.020 Cast Steels 20-30 0.007 0.010 0.010 0.015 0.020 K Cast Iron 30-40 0.010 0.012 0.013 0.017 0.025 Aluminum ≤6%Si, Copper 70-100 0.012 0.012 0.015 0.020 0.030 N Aluminum >6%Si 90-150 0.012 0.012 0.015 0.020 0.030 Synthetics, duroplastics, 100-150 0.015 0.025 0.030 0.040 0.050 thermoplastics S Nickel alloys, Titanium alloys. 15-30 0.007 0.010 0.010 0.015 0.020 H Hardened Steel, 45-50 HRc 20-40 0.007 0.010 0.013 0.017 0.025 B15-9
