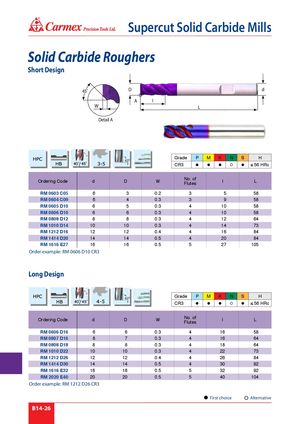

® Supercut Solid Carbide Mills Solid Carbide Roughers Short Design 45˚ D d A I W L Detail A Grade P M K N S H 40˚ 45˚ CR3      ≤ 56 HRc Ordering Code d D W No. ofFlutes I L RM 0603 C05 6 3 0.2 3 5 58 RM 0604 C09 6 4 0.3 3 9 58 RM 0605 D10 6 5 0.3 4 10 58 RM 0606 D10 6 6 0.3 4 10 58 RM 0808 D12 8 8 0.3 4 12 64 RM 1010 D14 10 10 0.3 4 14 73 RM 1212 D16 12 12 0.4 4 16 84 RM 1414 D20 14 14 0.5 4 20 84 RM 1616 E27 16 16 0.5 5 27 105 Order example: RM 0606 D10 CR3 Long Design Grade P M K N S H 40˚ 45˚ CR3      ≤ 56 HRc Ordering Code d D W No. ofFlutes I L RM 0606 D16 6 6 0.3 4 16 58 RM 0807 D16 8 7 0.3 4 16 64 RM 0808 D18 8 8 0.3 4 18 64 RM 1010 D22 10 10 0.3 4 22 73 RM 1212 D26 12 12 0.4 4 26 84 RM 1414 D30 14 14 0.5 4 30 92 RM 1616 E32 16 16 0.5 5 32 92 RM 2020 E40 20 20 0.5 5 40 104 Order example: RM 1212 D26 CR3 First choice Alternative B14-26
