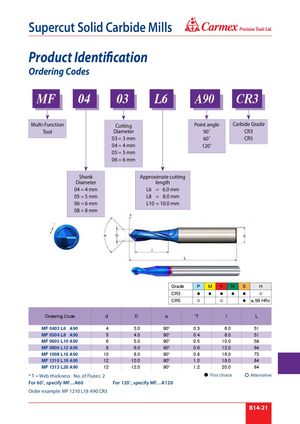

® Supercut Solid Carbide Mills Product Identification Ordering Codes MF 04 03 L6 A90 CR3 Multi-Function Cutting Point angle Carbide Grade Tool Diameter 90˚ CR3 03 = 3 mm 60˚ CR5 04 = 4 mm 120˚ 05 = 5 mm 06 = 6 mm Shank Approximate cutting Diameter length 04 = 4 mm L6 = 6.0 mm 05 = 5 mm L8 = 8.0 mm 06 = 6 mm L10 = 10.0 mm 08 = 8 mm Grade P M K N S H CR3       CR5    ≤ 56 HRc Ordering Code d D α *T I L MF 0403 L6 A90 4 3.0 90⁰ 0.3 6.0 51 MF 0504 L8 A90 5 4.0 90⁰ 0.4 8.0 51 MF 0605 L10 A90 6 5.0 90⁰ 0.5 10.0 58 MF 0806 L12 A90 8 6.0 90⁰ 0.6 12.0 64 MF 1008 L16 A90 10 8.0 90⁰ 0.8 16.0 73 MF 1210 L18 A90 12 10.0 90⁰ 1.0 18.0 84 MF 1212 L20 A90 12 12.0 90⁰ 1.2 20.0 84 * T = Web thickness No. of Flutes: 2 First choice Alternative For 60˚, specify MF…A60 For 120˚, specify MF…A120 Order example: MF 1210 L18 A90 CR3 B14-21
