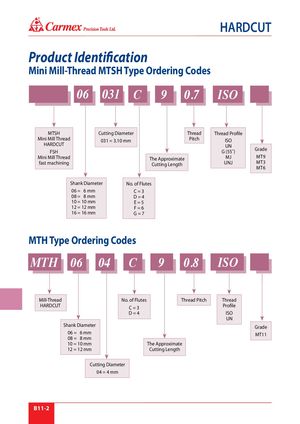

® HARDCUT Product Identification Mini Mill-Thread MTSH Type Ordering Codes 06 031 C 9 0.7 ISO MTSH Cutting Diameter Thread Thread Profile Mini Mill Thread 031 = 3.10 mm Pitch ISO HARDCUT UN G (55˚) Grade FSH Mini Mill Thread The Approximate MJ MT9 fast machining Cutting Length UNJ MT3 MT6 Shank Diameter No. of Flutes 06 = 6 mm C=3 08 = 8 mm D=4 10 = 10 mm E=5 12 = 12 mm F=6 16 = 16 mm G=7 MTH Type Ordering Codes MTH 06 04 C 9 0.8 ISO Mill-Thread No. of Flutes Thread Pitch Thread HARDCUT C=3 Profile D=4 ISO UN Shank Diameter Grade 06 = 6 mm MT11 08 = 8 mm 10 = 10 mm The Approximate 12 = 12 mm Cutting Length Cutting Diameter 04 = 4 mm B11-2
